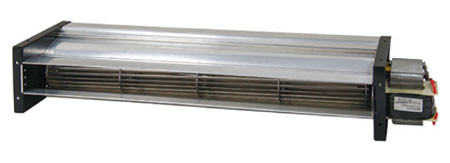

AC CROSS FLOW FANS
CA060M SERIES
- Size : ø60mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : AC Shaded Pole Type
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
- Housing / Impeller : Aluminum / Aluminum
- Motor : AC Shaded Pole Type
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF
CA060M SERIES(2020)
|
Model Number |

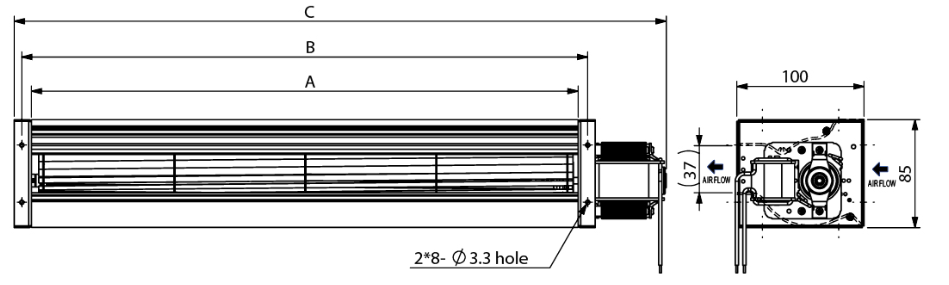

Size (mm) |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
||
|
A |
B |
C |
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
|
|
CA06030V22BHWM |
310 |
325 |
393 |
220 |
50/60 |
0.39/0.34 |
41/40 |
2750/3100 |
123/138 |
|
230 |
50 |
0.42 |
45 |
2750 |
123 |
||||
|
CA06036V22BHWM |
370 |
385 |
453 |
220 |
50/60 |
0.39/0.35 |
41/40 |
2700/3000 |
145/155 |
|
230 |
50 |
0.42 |
45 |
2700 |
145 |
||||
|
CA06042V22BHWM |
430 |
445 |
513 |
220 |
50/60 |
0.39/0.36 |
44/41 |
2650/2900 |
169/184 |
|
230 |
50 |
0.42 |
47 |
2700 |
169 |
||||
|
CA06052V22BHWM |
530 |
545 |
613 |
220 |
50/60 |
0.41/.039 |
46/47 |
2600/2650 |
205/208 |
|
230 |
50 |
0.44 |
50 |
2650 |
208 |
||||
|
_ for B / S = Ball Bearing / Sleeve Bearing |
|||||||||
