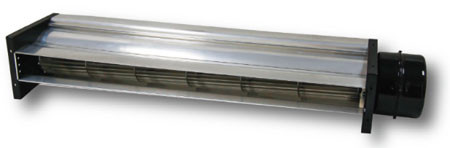

AC CROSS FLOW FANS
CA060MC SERIES
- Size: ø60mm
- Housing / Impeller: Aluminum / Aluminum
- Motor: AC Capacity Type
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
- Housing / Impeller: Aluminum / Aluminum
- Motor: AC Capacity Type
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
Download PDF
CA060MC SERIES (2020)
|
Model Number |

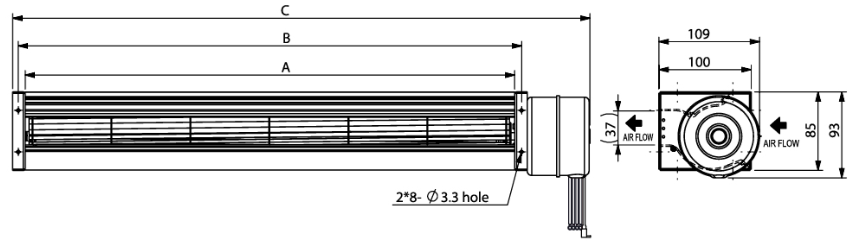

Size (mm) |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|
A |
B |
C |
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(g) |
|
|
CA06042_ _ HWMC |
430 |
445 |
525 |
120 |
60 |
0.30 |
34 |
3100 |
205 |
2.8 |
48 |
2000 |
|
220 |
50/60 |
0.16/0.17 |
29/34 |
2650/3000 |
177/198 |
2.5/2.7 |
44/47 |
|||||
|
230 |
50 |
0.17 |
31 |
2650 |
177 |
2.5 |
44 |
|||||
|
CA06052_ _HWMC |
530 |
545 |
625 |
120 |
60 |
0.32 |
36 |
3000 |
237 |
2.7 |
48 |
2100 |
|
220 |
50/60 |
0.17/0.18 |
31/36 |
2600/2900 |
205/226 |
2.5/2.6 |
45/47 |
|||||
|
230 |
50 |
0.18 |
33 |
2600 |
205 |
2.5 |
45 |
|||||
|
CA06060V_ _ HWMC |
610 |
625 |
705 |
120 |
60 |
0.34 |
38 |
2900 |
261 |
2.6 |
48 |
2200 |
|
220 |
50/60 |
0.17/0.19 |
32/37 |
2500/2750 |
226/247 |
2.4/2.5 |
45/47 |
|||||
|
230 |
50 |
0.18 |
34 |
2550 |
230 |
2.4 |
45 |
|||||
|
CA06070_ _ HWMC |
710 |
725 |
805 |
120 |
60 |
0.36 |
40 |
2800 |
297 |
2.6 |
49 |
2300 |
|
220 |
50/60 |
0.18/0.20 |
34/39 |
2400/2550 |
258/272 |
2.3/2.5 |
46/47 |
|||||
|
230 |
50 |
0.19 |
36 |
2450 |
261 |
2.4 |
46 |
|||||
_ for B / S = Ball Bearing / Sleeve Bearing
