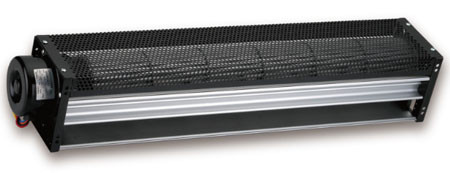

AC CROSS FLOW FANS
CA090F SERIES

- Size: ø90mm
- Housing / Impeller Aluminum / Aluminum
- Motor: AC Capacity Type
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
Download PDF
CA090F SERIES (2020)



Model Number

Size (mm)

Voltage

Frequency

Current

Power

Speed

Air Flow

Pressure

Noise

Weight

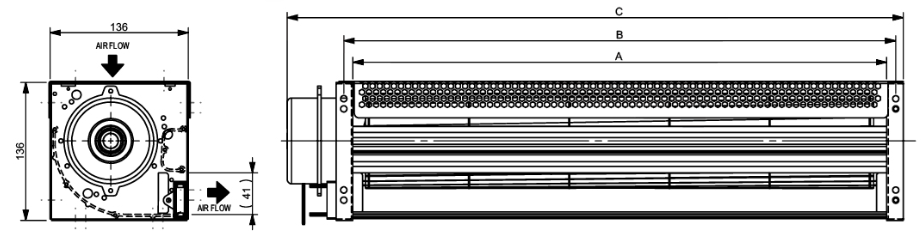

A

B

C

(V)

(Hz)

(A)

(W)

(RPM)

(m³/min)

(mmH2O)

dB(A)

(kg)

CA09031DVBHWF

360

375

415

110

60

0.30

32

1500

6.3

3.1

49

2.5

120

50/60

0.29/0.32

32/37

1350/1550

5.8/6.6

2.3/3.4

47/53

220

50/60

0.15/0.16

29/33

1350/1550

5.8/6.3

2.3/3.1

47/49

230

50

0.15

32

1350

5.8

2.3

47

CA09047DVBHWF

525

540

580

110

60

0.33

35

1250

8.4

2.6

47

2.9

120

50/60

0.32/0.36

36/42

1200/1250

8.1/8.4

2.5/3.3

46/47

220

50/60

0.16/0.18

32/37

1200/1300

8.1/8.6

2.5/3.0

46/48

230

50

0.16

34

1250

8.4

2.6

47

CA09063DVBHWF

680

695

756

110

60

0.68

71

1700

15.1

4.2

54

4.4

120

60

0.70

78

1700

15.1

4.2

54

220

50/60

0.38/0.36

59/74

1400/1700

12.9/15.1

3.0/4.2

49/54

230

50

0.40

64

1500

13

3.0

50

CA09088DVBHWF

930

945

1005

110

60

0.80

85

1600

17.9

3.4

56

4.7

120

60

0.82

93

1600

17.9

3.4

56

220

50/60

0.41/0.42

69/88

1400/1700

16.6/19.4

2.8/4.0

52/57

230

50

0.43

73

1500

16.8

3.1

54

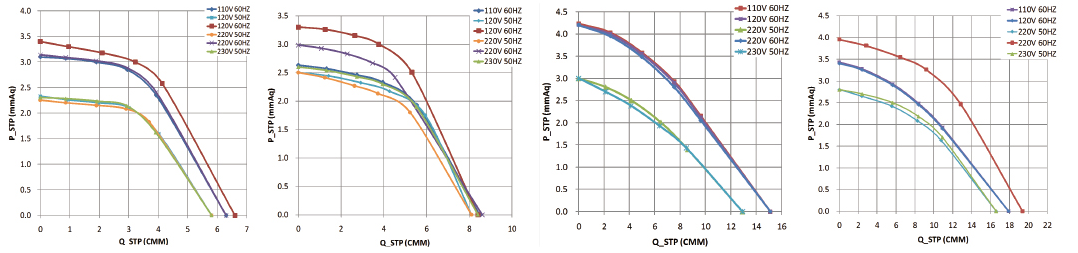

                CA09031F                                   CA09047F                                     CA09063F                                   CA09088F
