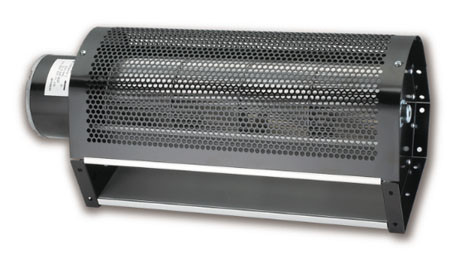

AC CROSS FLOW FANS
CA110F SERIES
- Size: ø110mm
- Housing / Impeller： Aluminum / Aluminum
- Motor: AC Capacity Type
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
- Housing / Impeller： Aluminum / Aluminum
- Motor: AC Capacity Type
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
Download PDF
CA110F SERIES (2020)
|

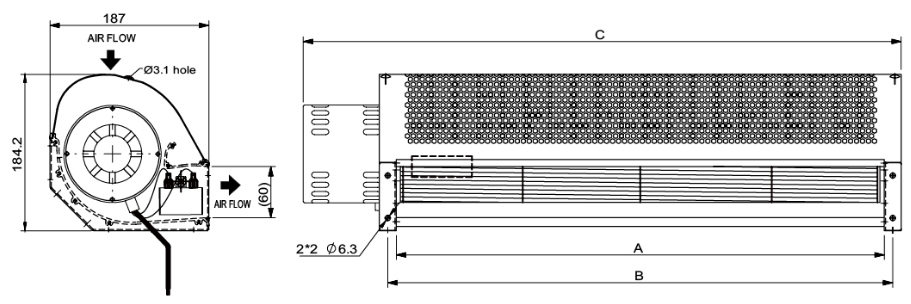

Model Number |
Size (mm) |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|
A |
B |
C |
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(kg) |
|
|

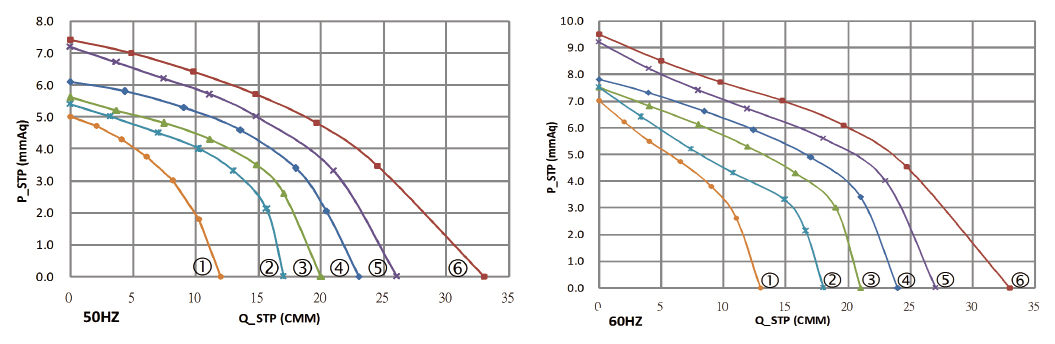

①CA11037V22BHWF |
385 |
405 |
498 |
220 |
50/60 |
0.27/0.30 |
60/70 |
1100/1200 |
424/459 |
5.0/7.0 |
52/54 |
5.0 |
|
②CA11048V22BHWF |
495 |
515 |
608 |
220 |
50/60 |
0.40/0.50 |
90/105 |
1200/1300 |
600/636 |
5.6/7.5 |
56/58 |
5.5 |
|
③CA11052V22BHWF |
535 |
555 |
648 |
220 |
50/60 |
0.40/0.50 |
90/110 |
1200/1300 |
707/742 |
5.4/7.5 |
56/58 |
6.0 |
|
④CA11060V22BHWF |
625 |
645 |
755 |
220 |
50/60 |
0.45/0.57 |
105/130 |
1250/1300 |
813/848 |
6.1/7.8 |
57/58 |
6.4 |
|
⑤CA11067V22BHWF |
685 |
705 |
810 |
220 |
50/60 |
0.50/0.60 |
102/126 |
1200/1300 |
919/954 |
7.2/9.2 |
56/58 |
6.7 |
|
⑥CA11088V22BHWF |
897 |
917 |
1010 |
220 |
50/60 |
0.60/0.80 |
136/175 |
1200/1200 |
1166/1166 |
7.4/9.5 |
58/58 |
8.1 |
