AC CROSS FLOW FANS
CE040E SERIES
- Size : ø40mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : AC Shaded Pole Type
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
- Housing / Impeller : Aluminum / Aluminum
- Motor : AC Shaded Pole Type
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF

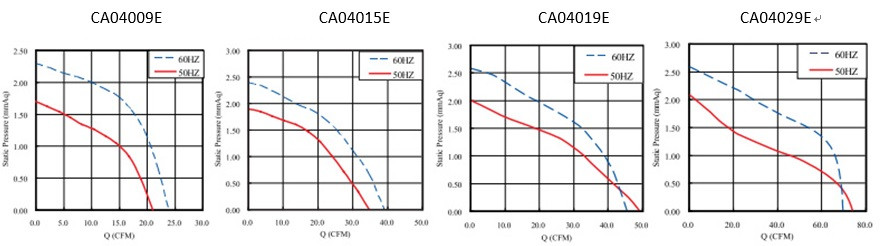

CA040E SERIES(2020)
|

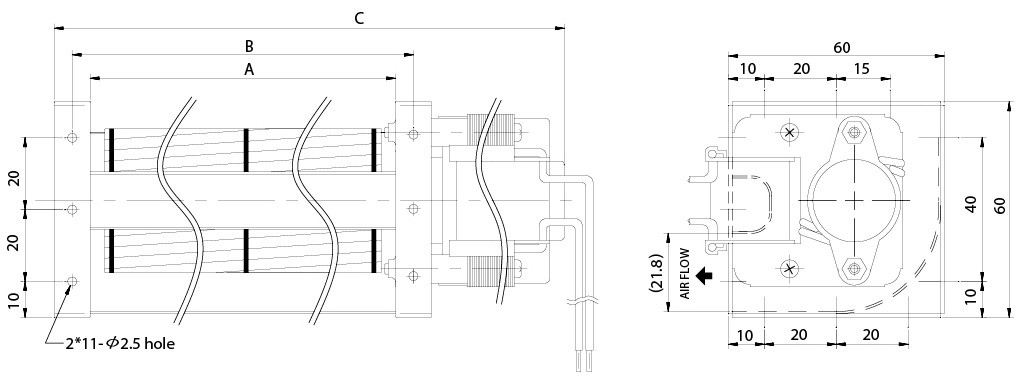

Model Number |
Size (mm) |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|
A |
B |
C |
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(g) |
|
|
CA04009V11_HWE |
98 |
108 |
154 |
120 |
50/60 |
0.14/0.12 |
10/9 |
2700/3000 |
21/24 |
1.7/2.3 |
29/33 |
520 |
|
CA04009V22_HWE |
230 |
50/60 |
0.09/0.07 |
11/9 |
2700/3000 |
21/24 |
1.7/2.3 |
29/33 |
||||
|
CA04015V11_HWE |
160 |
170 |
222 |
120 |
50/60 |
0.15/0.13 |
11/10 |
2600/2800 |
35/39 |
1.9/2.4 |
30/34 |
560 |
|
CA04015V22_HWE |
230 |
50/60 |
0.09/0.07 |
11/9 |
2600/2800 |
35/39 |
1.9/2.4 |
30/34 |
||||
|
CA04019V11_HWE |
198 |
208 |
260 |
120 |
50/60 |
0.15/0.13 |
10/9 |
2500/2400 |
49/46 |
2.0/2.6 |
33/31 |
600 |
|
CA04019V22_HWE |
230 |
50/60 |
0.09/0.07 |
12/11 |
2500/2400 |
49/46 |
2.0/2.6 |
33/31 |
||||
|
CA04029V11_HWE |
300 |
310 |
366 |
120 |
50/60 |
0.23/0.21 |
17/16 |
2400/2200 |
74/70 |
2.1/2.6 |
37/35 |
730 |
|
CA04029V22_HWE |
230 |
50/60 |
0.10/0.09 |
13/13 |
2400/2200 |
74/70 |
2.1/2.6 |
37/35 |
||||
|
_ for B / S = Ball Bearing / Sleeve Bearing |
||||||||||||
