AC CROSS FLOW FANS

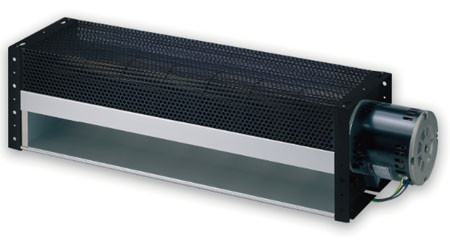

CA150E SERIES
- Size: ø150mm
- Housing / Impeller: Aluminum / Aluminum
- Motor: AC Capacity Type
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
- Housing / Impeller: Aluminum / Aluminum
- Motor: AC Capacity Type
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
Download PDF
CA150E SERIES (2020)
|
Model Number |
Size (mm) |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|

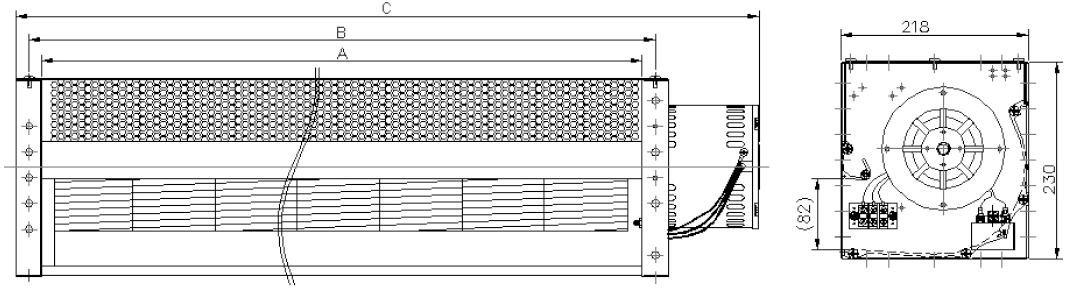

A |
B |
C |
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(kg) |
|
|

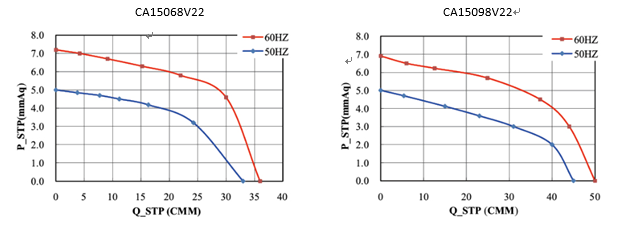

CA15068V22BHWE |
700 |
730 |
886 |
220 |
50/60 |
1.2/1.1 |
156/210 |
950/1150 |
1168/1274 |
5.0/7.2 |
59/63 |
13.6 |
|
CA15098V22BHWE |
1000 |
1030 |
1166 |
220 |
50/60 |
1.3/1.3 |
190/265 |
900/1100 |
1593/1770 |
5.0/6.9 |
59/63 |
15.8 |
