AC CROSS FLOW FANS

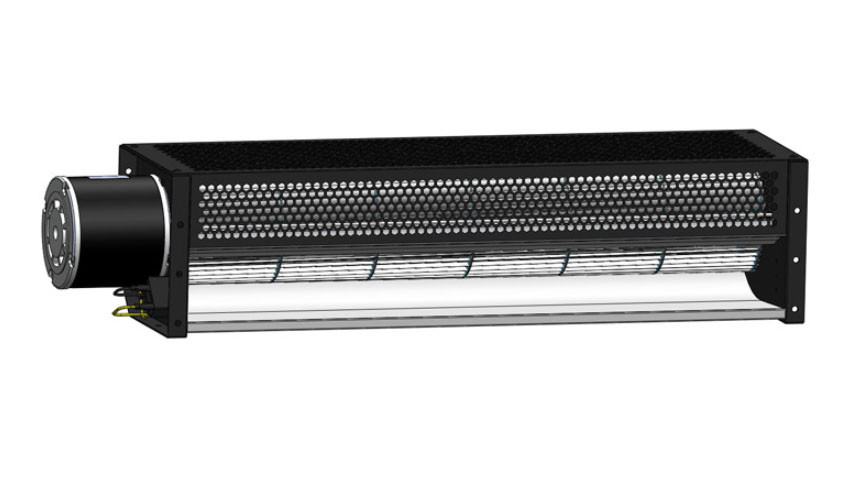

CA110G SERIES
CA110G SERIES
- Size: ø110mm
- Housing / Impeller： Aluminum / Aluminum
- Motor: AC Capacity Type
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
- Size: ø110mm
- Housing / Impeller： Aluminum / Aluminum
- Motor: AC Capacity Type
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
Download PDF
CA110G SERIES (2022)
|
Model Number |
Size (mm) |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|
A |
B |
C |
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(kg) |
|
|
CA11037V22BHWG |
385 |
405 |
500 |
220 |
50/60 |
0.35/0.38 |
69/76 |
1050/1100 |
459/495 |
5.5/7.5 |
54/55 |
5.1 |
|
CA11048V22BHWG |
495 |
515 |
610 |
220 |
50/60 |
0.46/0.53 |
95/113 |
1100/1150 |
671/707 |
5.5/8.0 |
59/60 |
5.9 |
|
CA11060V22BHWG |
625 |
645 |
752 |
220 |
50/60 |
0.68/0.93 |
144/193 |
1250/1350 |
954/1025 |
7.0/9.0 |
62/64 |
7.3 |
|
CA11067V22BHWG |
685 |
705 |
812 |
220 |
50/60 |
0.70/0.95 |
146/196 |
1200/1300 |
1060/1131 |
7.0/8.5 |
62/63 |
7.6 |
|
CA11079V22BHWG |
810 |
830 |
937 |
220 |
50/60 |
0.75/0.96 |
157/203 |
1150/1200 |
1131/1201 |
6..5/8.0 |
62/63 |
8.3 |
|
CA11088V22BHWG |
897 |
917 |
1024 |
220 |
50/60 |
0.78/1.00 |
164/210 |
1100/1150 |
1021/1272 |
6.0/7.0 |
61/62 |
8.6 |
