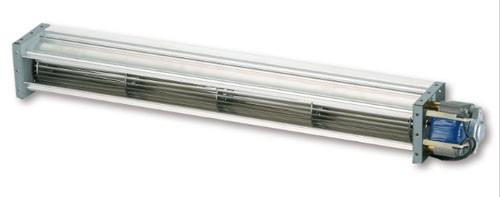

AC CROSS FLOW FANS
CA040M SERIES
- Size : ø40mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : AC Shaded Pole Type
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
- Housing / Impeller : Aluminum / Aluminum
- Motor : AC Shaded Pole Type
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF
CA040M SERIES(2020)
|

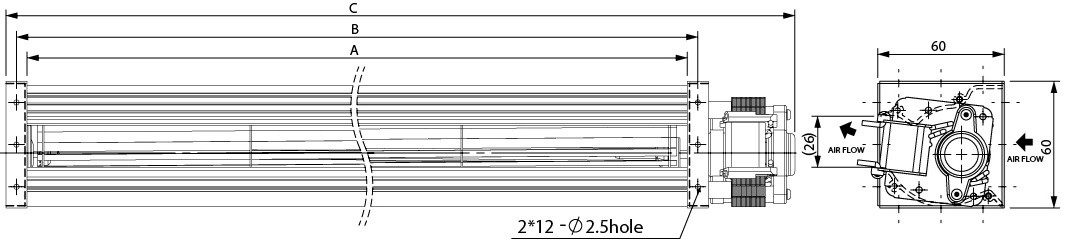

Model Number |
Size (mm) |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||||
|
A |
B |
C |
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(g) |
|||
|
CA04030V11_HWM |
310 |
320 |
371 |
120 |
50/60 |
0.15/0.13 |
11/10 |
2500/2600 |
46/49 |
0.6/0.8 |
28/29 |
700 |
||
|
CA04030V22_HWM |
230 |
50/60 |
0.09/0.08 |
14/13 |
2500/2700 |
46/49 |
0.6/0.8 |
28/30 |
||||||
|
CA04035V11_HWM |
360 |
370 |
425 |
120 |
50/60 |
0.22/0.19 |
16/15 |
2600/2900 |
60/64 |
0.6/0.7 |
29/32 |
805 |
||
|
CA04035V22_HWM |
230 |
50/60 |
0.09/0.08 |
13/12 |
2500/2700 |
57/60 |
0.6/0.7 |
28/30 |
||||||
|
CA04040V11_HWM |
410 |
420 |
475 |
120 |
50/60 |
0.22/0.20 |
15/14 |
2600/2800 |
64/78 |
0.6/0.8 |
29/31 |
845 |
||
|
CA04040V22_HWM |
230 |
50/60 |
0.09/0.08 |
13/12 |
2500/2600 |
60/64 |
0.6/0.7 |
37/35 |
||||||
|
||||||||||||||
