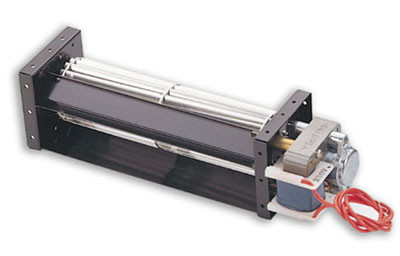

AC CROSS FLOW FANS
CA043E SERIES

- Size: ø43mm
- Housing / Impeller: Aluminum / Aluminum
- Motor: AC Shaded Pole Type
- Operating Temperature : 0°C ~ +45°C
- Insulation: Class A
Download PDF
CA043E SERIES(2020)

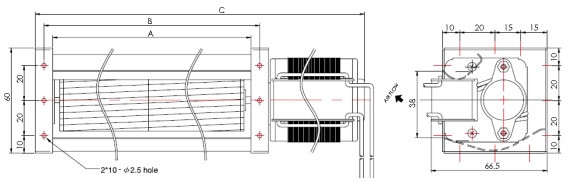

Model Number

Size (mm)

Voltage

Frequency

Current

Power

Speed

Air Flow

Pressure

Noise

Weight

A

B

C

(V)

(Hz)

(A)

(W)

(RPM)

(CFM)

(mmH2O)

dB(A)

(g)

CA04309V11_HWE

98

108

162

120

50/60

0.14/0.12

10/9

2600/3000

25/28

1.1/1.6

33/35

520

CA04309V22_HWE

230

50/60

0.08/0.07

10/9

2600/3000

25/28

1.1/1.6

33/35

CA04315V11_HWE

160

170

222

120

50/60

0.15/0.13

11/10

2300/2200

42/42

1.2/1.2

35/35

550

CA04315V22_HWE

230

50/60

0.08/0.07

11/10

2500/2500

42/42

1.2/1.2

35/35

CA04319V11_HWE

198

208

264

120

50/60

0.22/0.19

15/14

2400/2500

53/56

0.9/1.2

32/35

650

CA04319V22_HWE

230

50/60

0.09/0.08

13/12

2300/2000

53/56

0.9/1.2

32/35

CA04324V11_HWE

250

260

315

120

50/60

0.22/0.20

16/15

2300/2000

67/70

0.9/1.0

34/33

680

CA04324V22_HWE

230

50/60

0.09/0.08

13/12

2200/1800

63/56

0.9/1.0

33/30

CA04329V11_HWE

300

310

375

120

50/60

0.32/0.29

22/21

2500/2700

88/95

1.2/1.4

38/40

890

CA04329V22_HWE

230

50/60

0.14/0.13

19/18

2500/2500

88/88

1.2/1.4

3.7/37

CA04335V11_HWE

360

370

435

120

50/60

0.34/0.32

23/23

2500/2500

117/117

1.2/1.3

38/38

920

CA04335V22_HWE

230

50/60

0.15/0.14

20/19

2400/2100

113/88

1.2/1.3

36/33

_ for B / S = Ball Bearing / Sleeve Bearing
