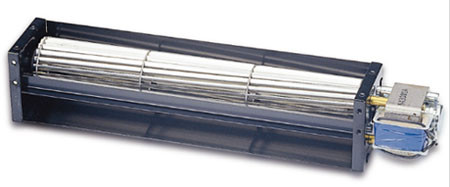

AC CROSS FLOW FANS
CA050E SERIES
- Size: ø43mm
- Housing / Impeller: Aluminum / Aluminum
- Motor: AC Shaded Pole Type
- Operating Temperature : 0°C ~ +45°C
- Insulation: Class A
- Housing / Impeller: Aluminum / Aluminum
- Motor: AC Shaded Pole Type
- Operating Temperature : 0°C ~ +45°C
- Insulation: Class A
Download PDF
CA050E SERIES(2020)
Model Number |

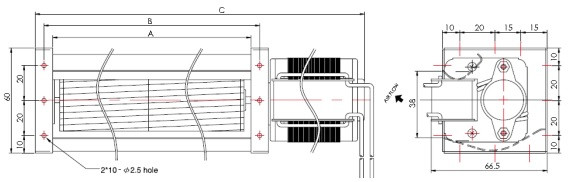

Size (mm) |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |

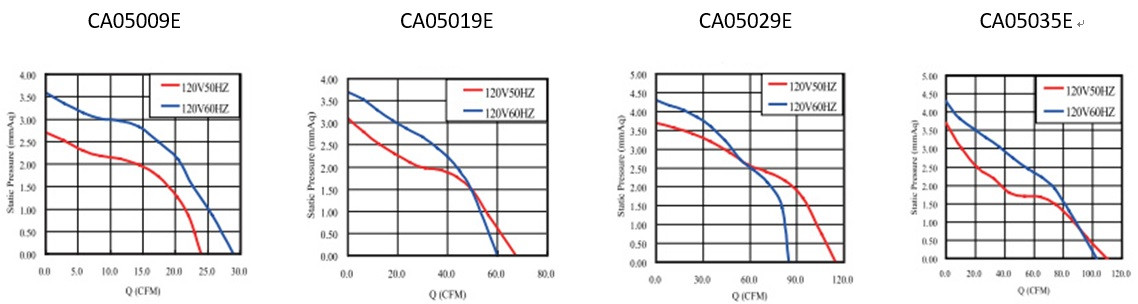

Pressure |
Noise |
Weight |
||
A |
B |
C |
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(g) |
|
CA05009V11_HWE |
98 |
108 |
162 |
120 |
50/60 |
0.15/0.13 |
11/10 |
2300/2400 |
24/28 |
2.7/3.6 |
36/37 |
610 |
CA05009V22_HWE |
230 |
50/60 |
0.09/0.07 |
11/10 |
2300/2400 |
24/28 |
2.7/3.6 |
36/37 |
||||
CA05019V11_HWE |
198 |
208 |
267 |
120 |
50/60 |
0.23/0.21 |
18/16 |
2000/1600 |
67/60 |
3.1/3.7 |
36/33 |
770 |
CA05019V22_HWE |
230 |
50/60 |
0.10/0.09 |
14/13 |
1900/1400 |
63/56 |
3.1/3.6 |
35/32 |
||||
CA05029V11_HWE |
298 |
308 |
377 |
120 |
50/60 |
0.35/0.33 |
24/24 |
2200/1800 |
116/88 |
3.7/4.3 |
41/37 |
1100 |
CA05029V22_HWE |
230 |
50/60 |
0.15/0.14 |
21/20 |
2100/1500 |
116/81 |
3.7/4.1 |
41/35 |
||||
CA05035V11_HWE |
350 |
368 |
437 |
120 |
50/60 |
0.35/0.33 |
23/23 |
2100/1500 |
110/103 |
3.7/4.3 |
41/36 |
1200 |
CA05035V22_HWE |
230 |
50/60 |
0.15/0.14 |
20/19 |
1900/1300 |
110/92 |
3.5/4.0 |
40/34 |
||||
_ for B / S = Ball Bearing / Sleeve Bearing |
