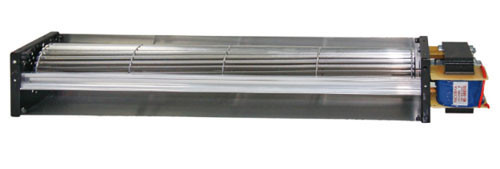

AC CROSS FLOW FANS
CA050F SERIES
- Size: ø50mm
- Housing / Impeller: Aluminum / Aluminum
- Motor: AC Shaded Pole Type
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
- Housing / Impeller: Aluminum / Aluminum
- Motor: AC Shaded Pole Type
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
Download PDF
CA050F SERIES(2020)
|
Model Number |
Size (mm) |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|

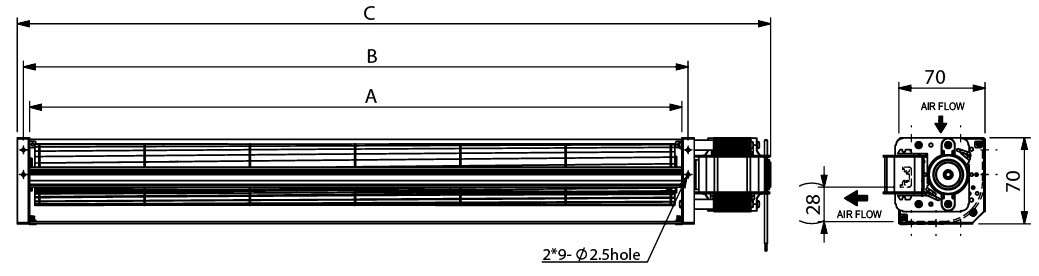

A |
B |
C |
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(g) |
|
|
CA0542V11_HWF |
430 |
440 |
512 |
120 |
50/60 |
0.46/0.44 |
30/30 |
2450/2300 |
166/155 |
3.5/3.7 |
47/45 |
1500 |
|
CA0542V22_HWF |
230 |
50/60 |
0.25/0.24 |
32/30 |
2350/2000 |
159/127 |
3.3/3.5 |
46/41 |
||||
|
CA0552V11_HWF |
530 |
540 |
612 |
120 |
50/60 |
0.48/0.46 |
32/31 |
2250/1900 |
201/152 |
3.3/3.4 |
46/41 |
1600 |
|
CA0552V22_HWF |
230 |
50/60 |
0.25/0.24 |
33/32 |
2200/1700 |
198/145 |
3.2/3.2 |
45/38 |
||||
|
CA0560V11_HWF |
610 |
620 |
692 |
120 |
50/60 |
0.49/0.47 |
33/32 |
2200/1700 |
216/159 |
3.5/3.2 |
47/38 |
1600 |
|
CA0560V22_HWF |
230 |
50/60 |
0.26/0.24 |
34/32 |
2100/1550 |
191/148 |
2.8/3.0 |
46/34 |
||||
|
_ for B / S = Ball Bearing / Sleeve Bearing |
|
|
|
|
|
|
|
|
||||
