DC CROSS FLOW FANS

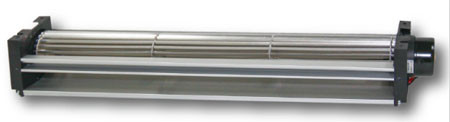

CD030B3L SERIES

- Size : ø30mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF
CD030B3L SERIES (2020)

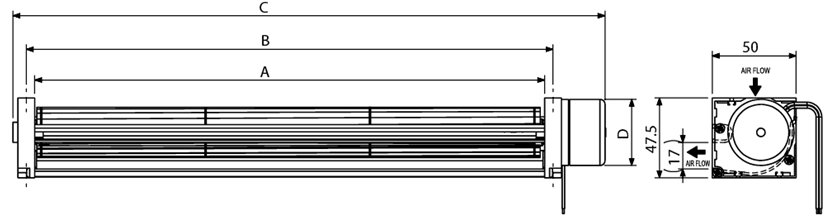

Model Number

Size (mm)

Voltage

Current

Power

Speed

Air Flow

Pressure

Noise

Weight

A

B

C

D

(V)

(A)

(W)

(RPM)

(CFM)

(mmH2O)

dB(A)

(g)

CD03024V12B3LWL

244

254

288

31

12

0.22

2.64

2800

46

1.7

37

210

CD03024V24B3LWL

24

0.13

3.12

CD03030V12B3LWL

304

314

348

31

12

0.25

3.00

2600

53

1.5

36

230

CD03030V24B3LWL

24

0.14

3.36

CD03035V12B3LWL

357

367

401

31

12

0.27

3.24

2500

64

1.4

35

260

CD03035V24B3LWL

24

0.15

3.60

CD03024V12B3HWL

244

254

293

38

12

0.61

7.32

4250

71

4.8

49

260

CD03024V24B3HWL

24

0.45

10.8

CD03030V12B3HWL

304

314

353

38

12

0.67

8.04

4100

85

4.4

48

290

CD03030V24B3HWL

24

0.45

10.8

CD03035V12B3HWL

357

367

406

38

12

0.72

8.64

3950

95

3.5

47

320

CD03035V24B3HWL

24

0.45

10.8

_for B/S=Ball Bearing/Sleeve Bearing
