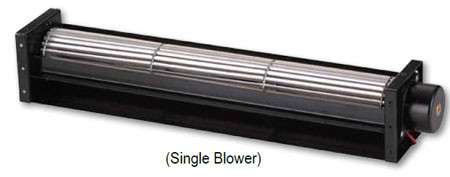

DC CROSS FLOW FANS
CD040E/CD040B3E/CD040B3F SERIES

- Size : ø40mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : * CD040E : DC Brushless Motor
* CD040B3E : DC Brushless 3-Phase Motor
* CD040F : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF
CD040E,CD040B3E,CD040B3F SERIE



Model Number

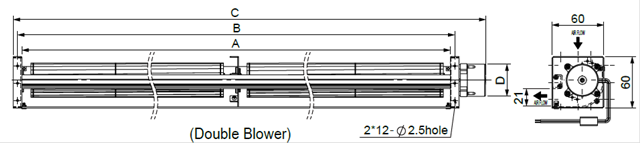

Size (mm)

Voltage

Current

Power

Speed

Air Flow

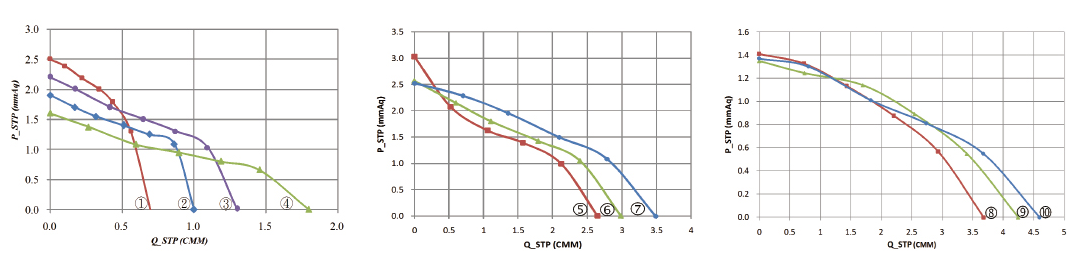

Pressure

Noise

Weight

A

B

C

D

(V)

(A)

(W)

(RPM)

(CFM)

(mmH2O)

dB(A)

(g)

CD04009V12BHWE

98

108

133

31

12

0.22

2.64

2950

25

2.5

37

220

CD04009V24BHWE

24

0.17

4.08

CD04015V12BHWE

160

170

195

31

12

0.28

3.36

2500

35

1.9

37

260

CD04015V24BHWE

24

0.19

4.56

CD04019V12B3HWE

198

208

233

31

12

0.29

3.48

2400

46

2.2

36

275

CD04019V24B3HWE

24

0.16

3.84

CD04029V12B3HWE

300

310

355

31

12

0.33

3.96

2000

64

1.6

32

350

CD04029V24B3HWE

24

0.18

4.32

CD04030V24B3HWE

310

320

350

38

24

0.30

7.20

2600

95

3.0

39

420

CD04035V24B3HWE

360

370

400

38

24

0.32

7.68

2450

106

2.6

38

470

CD04040V24B3HWE

410

420

450

38

24

0.34

8.16

2300

124

2.5

37

510

CD0403030V24B3HWF

(Double Fan)

630

640

670

38

24

0.26

6.24

1800

131

1.4

39

690

CD0403535V24B3HWF

(Double Fan)

730

740

770

38

24

0.27

6.48

1750

148

1.4

38

770

CD0404040V24B3HWF

(Double Fan)

830

840

870

38

24

0.28

6.72

1600

163

1.3

37

830

_for B/S=Ball Bearing/Sleeve Bearing
