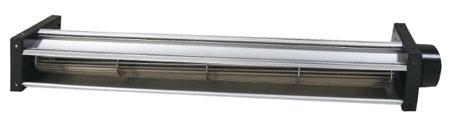

DC CROSS FLOW FANS
CD060B3H SERIES
- Size : ø60mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF
CD060B3H SERIES (2020)
|
Model Number |
Size (mm) |
Voltage |
Current |
Power |
Speed |
Air Flow |

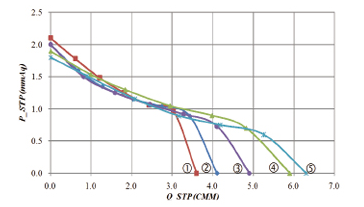

Pressure |
Noise |
Weight |
||
|

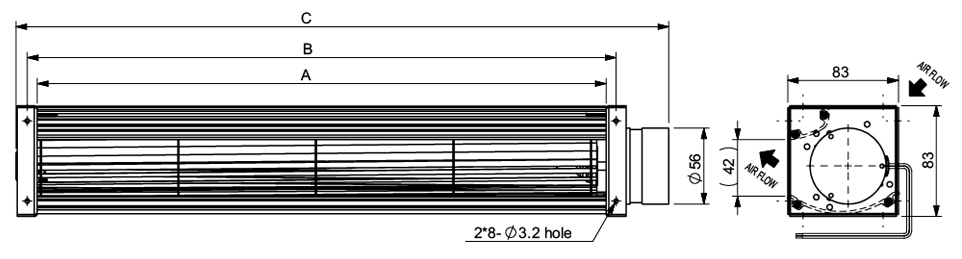

A |
B |
C |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(Kg) |
|
|
①CD06030V24B3HWH |
306 |
321 |
369 |
24 |
0.65 |
15.60 |
2600 |
127 |
2.1 |
47 |
0.90 |
|
②CD06036V24B3HWH |
366 |
381 |
429 |
24 |
0.71 |
17.04 |
2500 |
145 |
2.0 |
46 |
1.00 |
|
③CD06042V24B3HWH |
426 |
441 |
489 |
24 |
0.77 |
18.48 |
2450 |
173 |
2.0 |
46 |
1.05 |
|
④CD06052V24B3HWH |
526 |
541 |
589 |
24 |
0.85 |
20.40 |
2350 |
208 |
1.9 |
45 |
1.20 |
|
⑤CD06060V24B3HWH |
606 |
621 |
669 |
24 |
0.73 |
20.88 |
2200 |
223 |
1.8 |
44 |
1.25 |
