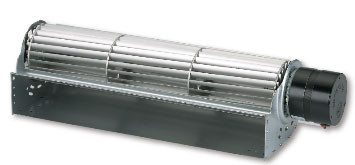

DC CROSS FLOW FANS
CD065B3Q SERIES
- Size : ø65mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF

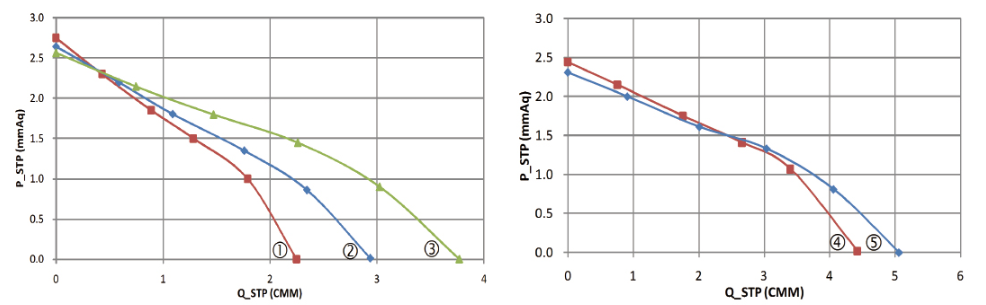

CD065B3Q SERIES (2020)
|
Model Number |

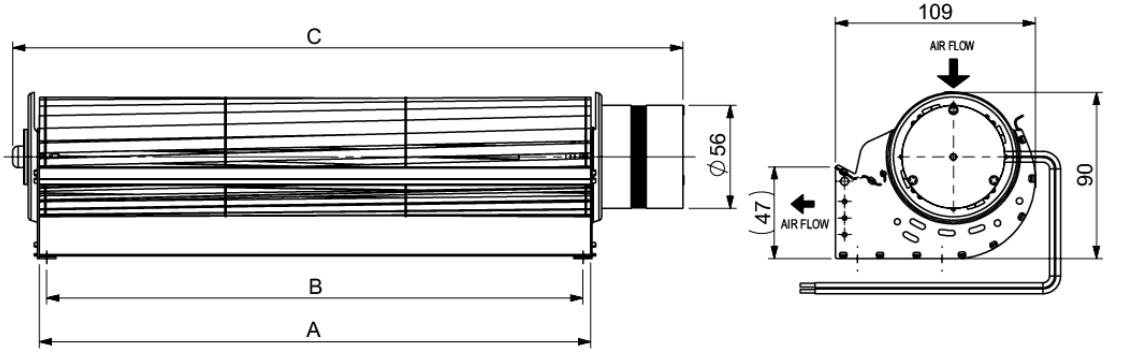

Size (mm) |
Voltage |
Current |
Power |
Speed |
Air Flow |
Noise |
Weight |
||
|
A |
B |
C |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
dB(A) |
(g) |
|
|
①CD06518V24B3HWQ |
180 |
172 |
250 |
24 |
0.20 |
4.80 |
1400 |
78 |
44 |
740 |
|
②CD06524V24B3HWQ |
240 |
232 |
310 |
24 |
0.23 |
5.52 |
1300 |
102 |
43 |
810 |
|
③CD06530V24B3HWQ |
300 |
292 |
370 |
24 |
0.27 |
6.48 |
1250 |
134 |
43 |
930 |
|
④CD06536V24B3HWQ |
360 |
352 |
430 |
24 |
0.29 |
6.96 |
1200 |
155 |
42 |
1050 |
|
⑤CD06542V24B3HWQ |
420 |
412 |
490 |
24 |
0.32 |
7.68 |
1150 |
180 |
41 |
1110 |
