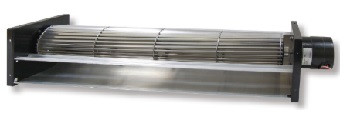

DC CROSS FLOW FANS
CD065B3G SERIES
- Size : ø65mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF
CD065B3G SERIES (2020)
|
Model Number |
Size (mm) |
Voltage |
Current |
Power |
Speed |
Max Pressure |
Air Flow |
Noise |
Weight |
||
|

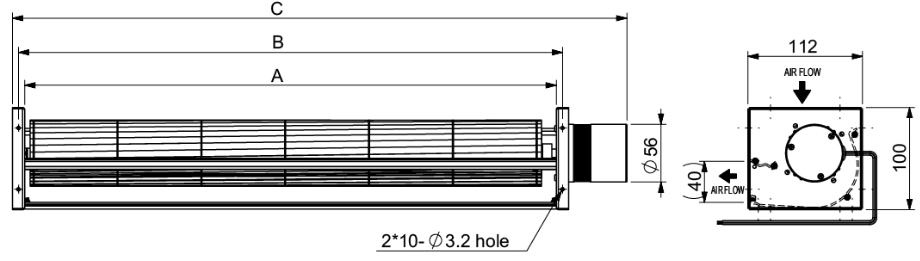

A |
B |
C |
(V) |
(A) |
(W) |
(RPM) |
(mmAq) |
(CFM) |
dB(A) |
(g) |
|
|
1CD06530V12B3HWG |
315 |
327 |
373 |
12 |
1.27 |
15.24 |
1700 |
4.40 |
187 |
49 |
1000 |
|
1CD06530V24B3HWG |
24 |
0.60 |
14.40 |
||||||||
|
2CD06536V12B3HWG |
375 |
387 |
433 |
12 |
1.44 |
17.28 |
1600 |
4.20 |
219 |
48 |
1100 |
|
2CD06536V24B3HWG |
24 |
0.70 |
16.80 |
||||||||
|
3CD06542V12B3HWG |
435 |
447 |
493 |
12 |
1.49 |
17.88 |
1550 |
4.00 |
230 |
47 |
1200 |
|
3CD06542V24B3HWG |
24 |
0.71 |
17.04 |
||||||||
|
4CD06550V24B3HWG |
520 |
532 |
601 |
24 |
1.20 |
28.80 |
1850 |
5.30 |
343 |
54 |
1400 |
|
5CD06560V24B3HWG |
620 |
632 |
701 |
24 |
1.32 |
31.68 |
1700 |
4.90 |
396 |
50 |
1600 |
|
6CD06570V24B3HWG |
720 |
732 |
801 |
24 |
1.38 |
33.12 |
1650 |
4.80 |
445 |
50 |
1700 |
|
7CD0654242V24B4HWG |
880 |
892 |
961 |
24 |
1.45 |
34.80 |
1600 |
4.60 |
477 |
48 |
2000 |
