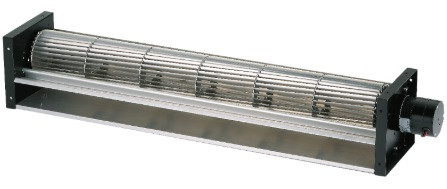

DC CROSS FLOW FANS
CD081B3F SERIES
- Size : ø81mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless 3-Phase Motor
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class
Download PDF

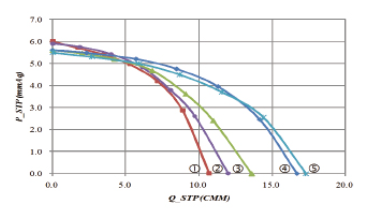

CD0813B3F SERIES (2020)
|
Model Number |

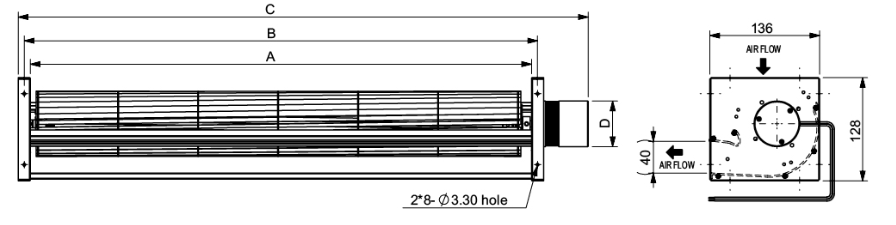

Size (mm) |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|
A |
B |
C |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(Kg) |
|
|
① CD08142V24B3HWF |
440 |
445 |
525 |
24 |
1.7 |
40.8 |
1700 |
378 |
6 |
57 |
1.9 |
|
② CD08150V24B3HWF |
520 |
535 |
605 |
24 |
1.83 |
43.92 |
1650 |
424 |
5.9 |
57 |
2.05 |
|
③ CD08160V24B3HWF |
620 |
635 |
705 |
24 |
2 |
48 |
1550 |
481 |
5.6 |
56 |
2.25 |
|
④ CD08170V24BH3WF |
720 |
735 |
805 |
24 |
2.27 |
54.4 |
1550 |
590 |
5.6 |
56 |
2.9 |
|
⑤ CD08180V24B3HWF |
820 |
835 |
905 |
24 |
2.35 |
56.4 |
1500 |
611 |
5.5 |
55 |
3.05 |
