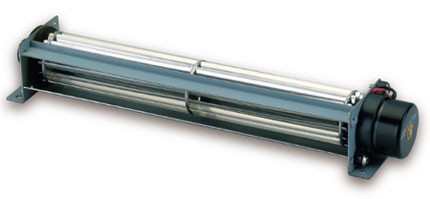

DC CROSS FLOW FANS
CD025V SERIES
- Size : ø25mm
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless Type
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
- Housing / Impeller : Aluminum / Aluminum
- Motor : DC Brushless Type
- Operating Temperature : 0°C ~ +45°C
- Insulation : Class A
Download PDF
CD025V SERIES (2020)
|
Model Number |

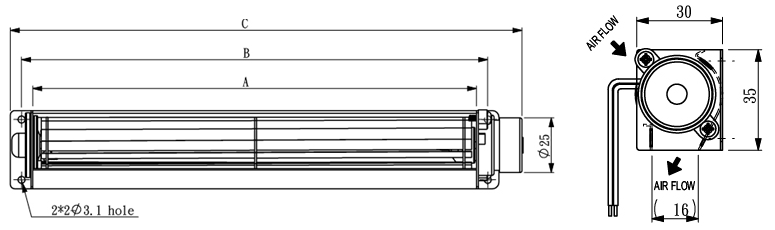

Size (mm) |
Voltage |
Current |
Power |
Speed |

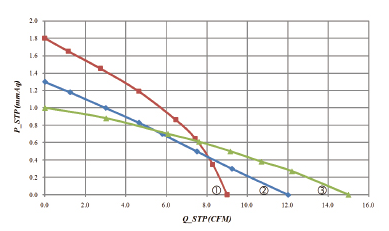

Air Flow |
Pressure |
Noise |
Weight |
||||||||
|
A |
B |
C |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(g) |
|||||||
|
①CD02509V12BHWV |
98 |
108 |
128 |
12 |
0.13 |
1.56 |
3800 |
9 |
1.8 |
30 |
80 |
||||||
|
②CD02515V12BHWV |
160 |
170 |
191 |
12 |
0.13 |
1.56 |
3550 |
12 |
1.0 |
31 |
100 |
||||||
|
③CD02519V12BHWV |
198 |
208 |
228 |
12 |
0.13 |
1.56 |
3300 |
15 |
1.0 |
35 |
110 |
||||||
|
_for B/S=Ball Bearing/Sleeve Bearing |
|||||||||||||||||
