DC Blowers

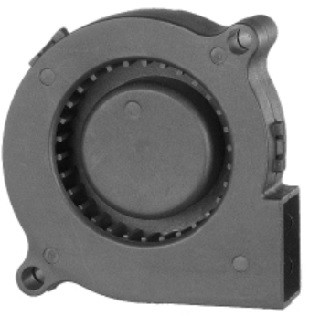

BD50153C SERIES

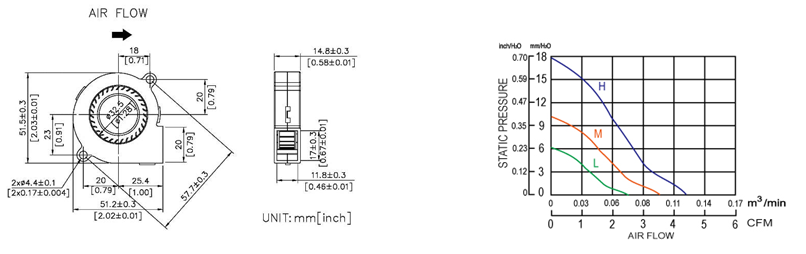

- Size: 50 x 50 x 15mm
- Housing: Plastic
- Impeller: Plastic
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 28g
- Housing: Plastic
- Impeller: Plastic
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 28g
Download PDF
BD50153C SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
BD5015V05_HW3C |
5 |
0.28 |
1.4 |
5000 |
4.4 |
17.78 |
38 |
|
BD5015V12_HW3C |
12 |
0.14 |
1.78 |
5000 |
4.4 |
17.78 |
38 |
|
BD5015V05_MW3C |
5 |
0.18 |
0.9 |
4000 |
3.5 |
10.16 |
32 |
|
BD5015V12_MW3C |
12 |
0.09 |
1.08 |
4000 |
3.5 |
10.16 |
32 |
|
BD5015V05_LW3C |
5 |
0.1 |
0.5 |
3000 |
2.5 |
6.09 |
25 |
|
BD5015V12_LW3C |
12 |
0.06 |
0.72 |
3000 |
2.5 |
6.09 |
25 |
_ for B / S = Ball Bearing / Sleeve Bearing
