DC Blowers

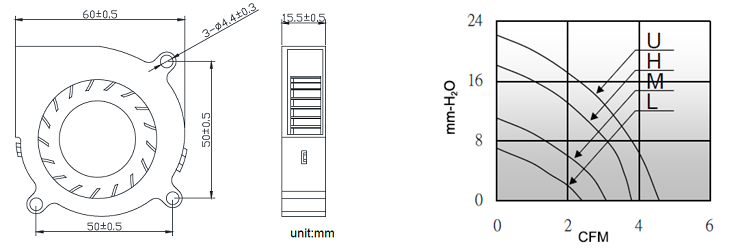

BD6015GE SERIES
- Size: 60 x 60 x 15mm
- Housing: Aluminum
- Impeller: Plastic
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 26g
- Housing: Aluminum
- Impeller: Plastic
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 26g
Download PDF
BD6015GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
BD6015V05_LWGE |
5 |
0.20 |
1.00 |
3500 |
2.35 |
7.0 |
27.0 |
|
BD6015V12_LWGE |
12 |
0.10 |
1.20 |
3500 |
2.35 |
7.0 |
27.0 |
|
BD6015V05_MWGE |
5 |
0.26 |
1.30 |
4500 |
3.14 |
11.2 |
32.5 |
|
BD6015V12_MWGE |
12 |
0.13 |
1.56 |
4500 |
3.14 |
11.2 |
32.5 |
|
BD6015V24_MWGE |
24 |
0.08 |
1.92 |
4500 |
3.14 |
11.2 |
32.5 |
|
BD6015V05_HWGE |
5 |
0.36 |
1.80 |
5500 |
3.77 |
18.1 |
37.2 |
|
BD6015V12_HWGE |
12 |
0.17 |
2.04 |
5500 |
3.77 |
18.1 |
37.2 |
|
BD6015V24_LWGE |
24 |
0.12 |
2.88 |
5500 |
3.77 |
18.1 |
37.2 |
|
BD6015V12_UWGE |
12 |
0.28 |
3.36 |
6500 |
4.60 |
22.0 |
45.3 |
|
BD6015V24_UWGE |
24 |
0.15 |
3.60 |
6500 |
4.60 |
22.0 |
45.3 |
_ for B / S = Ball Bearing / Sleeve Bearing
