AC Blowers

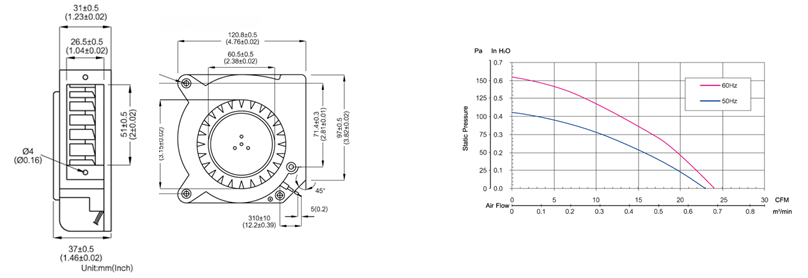

BA12137 SERIES
- Size: 121 x 121 x 37mm
- Housing: Housing Base of Galvanized Steel Plate
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Motor
- Operating Temperature: -10°C to + 70°C for Sleeve Type
-20°C to + 80°C for Ball Type
- Insulation: Class B or F
- Housing: Housing Base of Galvanized Steel Plate
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Motor
- Operating Temperature: -10°C to + 70°C for Sleeve Type
-20°C to + 80°C for Ball Type
- Insulation: Class B or F
Download PDF
BA12137 SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
dB(A) |
|
|
BA12137V11BHW |
115 |
50/60 |
0.27/0.24 |
21/19 |
2500/2500 |
22/23 |
53/54 |
|
BA12137V22BHW |
230 |
50/60 |
0.14/0.12 |
21/20 |
2500/2500 |
22/23 |
53/54 |
* for T/W = Terminals/ Lead Wires
