AC Blowers
BA22056 SERIES

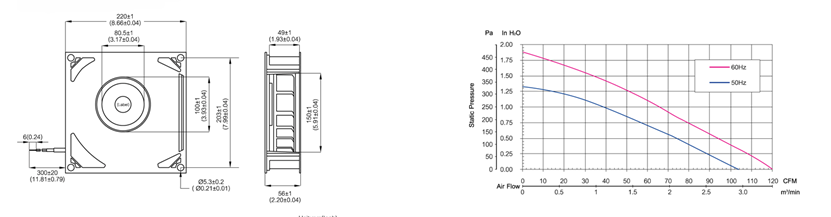

- Size: 220 x 220 x 56mm
- Housing: Housing Base of Galvanized Steel Plate
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Motor
- Operating Temperature: -20°C to + 80°C for Ball Type
- Insulation: Class B or F
- Housing: Housing Base of Galvanized Steel Plate
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Motor
- Operating Temperature: -20°C to + 80°C for Ball Type
- Insulation: Class B or F
Download PDF
BA22056 SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
dB(A) |
|
|
BA22056V11BHW |
115 |
50/60 |
0.34/0.42 |
37/45 |
2900/3300 |
103/117 |
64/66 |
|
BA22056V22BHW |
230 |
50/60 |
0.16/0.20 |
36/44 |
3300/3300 |
104/120 |
64/66 |
* for T/W = Terminals/ Lead Wires
