AC Blowers

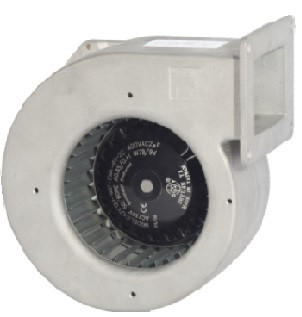

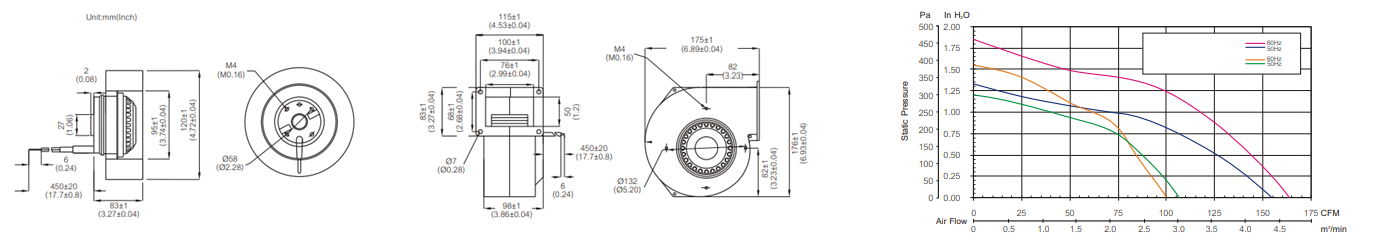

BA13298 SERIES
- Size: Φ120 x 98mm
- Housing: Die-cast Aluminum
- Impeller: Galvanized Sheet Steel
- Motor: Capacitor With External Rotor Motor
- Operating Temperature: -20°C ~ +60°C
- Insulation: Class B or F
- Weight: 1910g
- Housing: Die-cast Aluminum
- Impeller: Galvanized Sheet Steel
- Motor: Capacitor With External Rotor Motor
- Operating Temperature: -20°C ~ +60°C
- Insulation: Class B or F
- Weight: 1910g
Download PDF
BA13298 SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
dB(A) |
|
|
BA13298V11BHW |
115 |
50/60 |
0.72/0.80 |
78/92 |
2310/2470 |
154/164 |
60/61 |
|
BA13298V22BHW |
230 |
50/60 |
0.35/0.41 |
78/94 |
2300/2460 |
154/164 |
60/61 |
|
BA13298V11BHW |
115 |
50/60 |
0.31/0.36 |
36/41 |
1640/1530 |
107/100 |
52/51 |
|
BA13298V22BMW |
230 |
50/60 |
0.19/0.21 |
42/47 |
1640/1530 |
107/100 |
52/51 |
_ for B / F = Ball Bearing / FMB Bearing
