AC Fans 11cm ~ 16cm

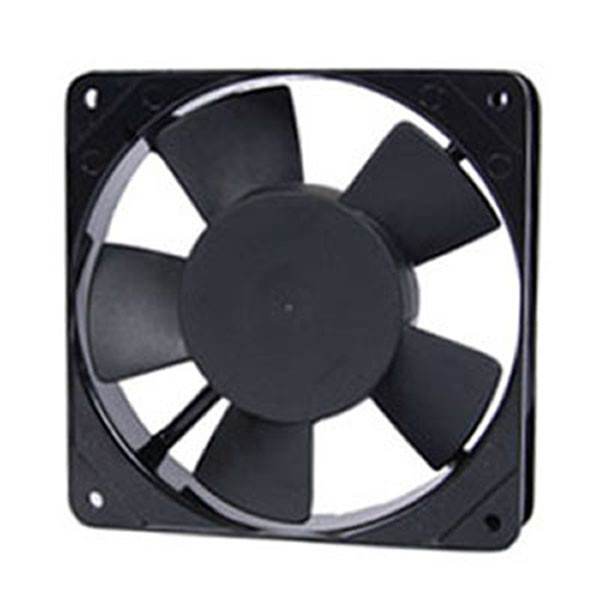

AA1225YY SERIES

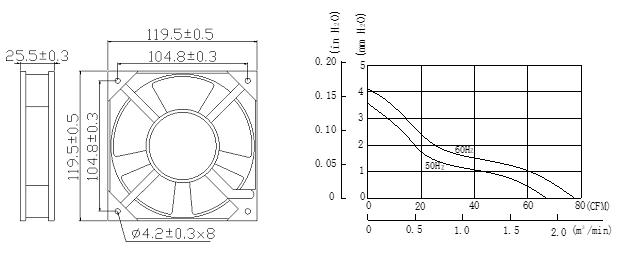

- Size: 120 x 120 x 25mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF
AA1225YY SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA1225V11_HWYY |
115 |
50/60 |
0.19/0.18 |
19/18 |
2200/2400 |
66/78 |
3.56/4.06 |
38/40 |
|
AA1225V11_MWYY |
115 |
50/60 |
0.16/0.15 |
16/15 |
2000/2000 |
58/58 |
3.00/3.20 |
35/35 |
|
AA1225V11_LWYY |
115 |
50/60 |
0.13/0.11 |
14/13 |
1800/1700 |
50/48 |
2.78/2.68 |
30/29 |
|
AA1225V22_HWYY |
220 |
50/60 |
0.09/0.09 |
19/18 |
2200/2400 |
66/78 |
3.56/4.06 |
38/40 |
|
AA1225V22_MWYY |
220 |
50/60 |
0.07/0.07 |
16/15 |
2000/2000 |
58/58 |
3.00/3.20 |
35/35 |
|
AA1225V22_LWYY |
220 |
50/60 |
0.05/0.05 |
14/13 |
1800/1700 |
50/48 |
2.78/2.68 |
30/29 |
_ for B / S = Ball Bearing / Sleeve Bearing
