AC Fans 11cm ~ 16cm

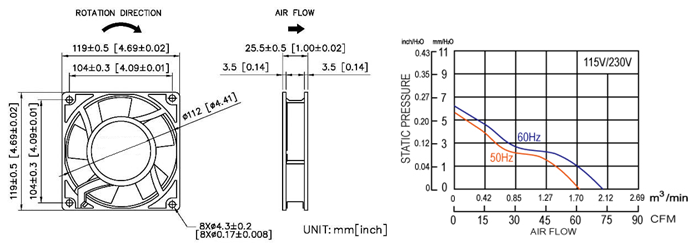

AA1225 SERIES
- Size: 120 x 120 x 25mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF
AA1225YY SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA1225V11_HW |
115 |
50/60 |
0.15/0.12 |
10/13 |
2600/3000 |
61/72 |
5.58/6.35 |
42/45 |
|
AA1225V22_HW |
230 |
50/60 |
0.07/0.06 |
10/13 |
2600/3000 |
61/72 |
5.58/6.35 |
42/45 |
_ for B / S = Ball Bearing / Sleeve Bearing
