AC Fans 11cm ~ 16cm

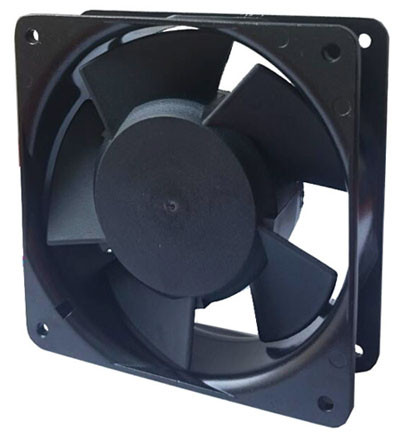

AA1238C5 SERIES

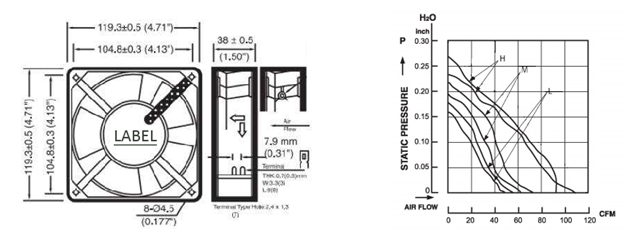

- Size: 120 x 120 x 38mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF
AA1238C5 SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA1238V11_H*C5 |
115 |
50/60 |
0.24/0.18 |
18/17 |
2700/3000 |
80/105 |
5.84/7.11 |
42/47 |
|
AA1238V11_M*C5 |
115 |
50/60 |
0.13/0.12 |
11/10 |
2200/2500 |
63/71 |
4.82/5.33 |
37/39 |
|
AA1238V11_L*C5 |
115 |
50/60 |
0.11/0.10 |
9/8 |
1800/2000 |
54/52 |
4.06/3.81 |
30/34 |
|
AA1238V22_H*C5 |
220 |
50/60 |
0.13/0.11 |
18/17 |
2700/3000 |
80/105 |
5.84/7.11 |
42/47 |
|
AA1238V22_M*C5 |
220 |
50/60 |
0.11/0.09 |
11/10 |
2200/2500 |
63/71 |
4.82/5.33 |
37/39 |
|
AA1238V22_L*C5 |
220 |
50/60 |
0.08/0.06 |
9/8 |
1800/2000 |
54/52 |
4.06/3.81 |
30/34 |
_ for B / S = Ball Bearing / Sleeve Bearing,
* for T/W = Terminals/ Lead Wires
