AC Fans 11cm ~ 16cm

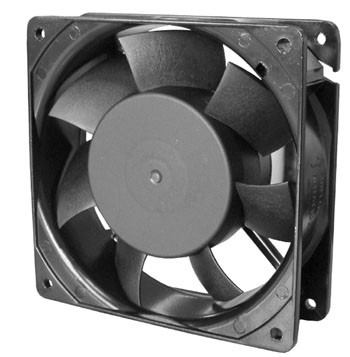

AA1238C7 SERIES
- Size: 120 x 120 x 38mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF
AA1238C7 SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA1238V11_H*C7 |
115 |
50/60 |
0.25/0.19 |
18/19 |
2700/3000 |
112/120 |
6.85/7.62 |
40/45 |
|
AA1238V22_H*C7 |
220 |
50/60 |
0.14/0.12 |
18/19 |
2700/3000 |
112/120 |
6.85/74.62 |
40/45 |
_ for B / S = Ball Bearing / Sleeve Bearing,
* for T/W = Terminals/ Lead Wires
