AC Fans 11cm ~ 16cm

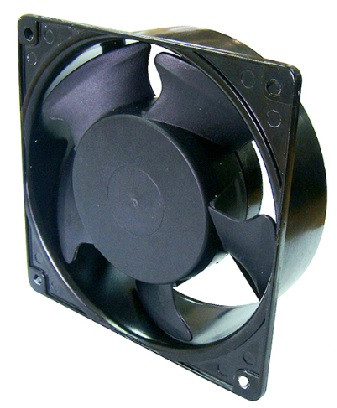

AA1238RC5 SERIES

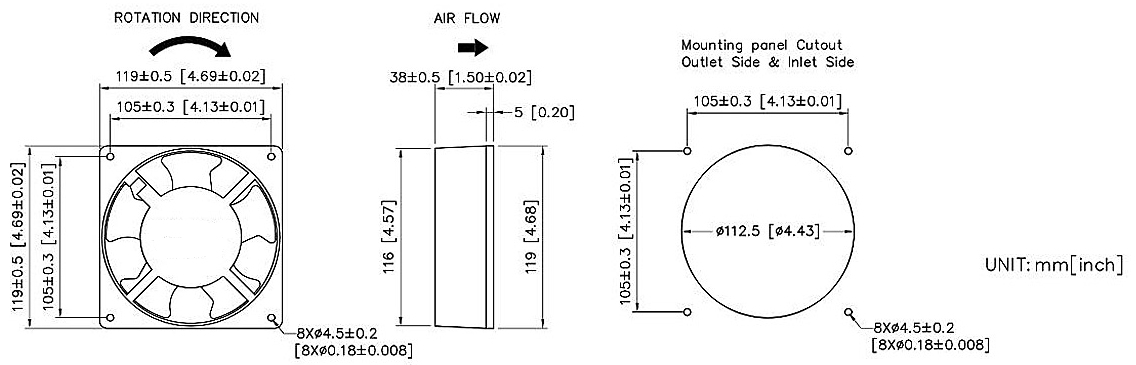

- Size: 120 x 120 x 38mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF
AA1238RC5 SERIES (2020)
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
AA1238RV22_M*C5 |
230 |
50/60 |
0.15/0.12 |
24.4/20 |
2650/3050 |
93.7/97.5 |
6.2/6.5 |
42/47 |
_ for B / S = Ball Bearing / Sleeve Bearing,
* for T/W = Terminals/ Lead Wires
