AC Fans 11cm ~ 16cm

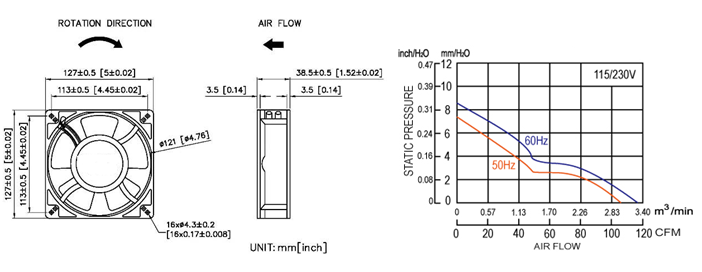

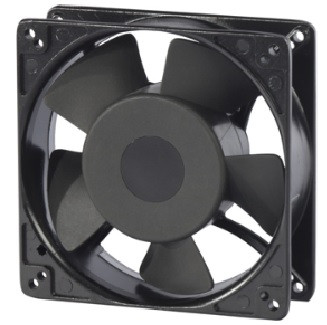

AA12738 SERIES
- Size: 127 x 127 x 38mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF
AA12738 SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA12738V11_H* |
115 |
50/60 |
0.32/0.26 |
24/20 |
2700/3100 |
107/123 |
7.4/8.5 |
47/50 |
|
AA12738V22_H* |
230 |
50/60 |
0.16/.0.13 |
25/20 |
2700/3100 |
107/123 |
7.4/8.5 |
47/50 |
_ for B / S = Ball Bearing / Sleeve Bearing,
* for T/W = Terminals/ Lead Wires
