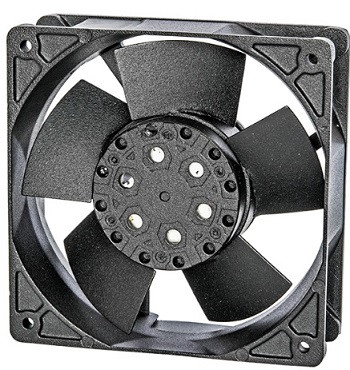

AC Fans 11cm ~ 16cm
AA1238M9L SEIRES
- Size: 120 x 120 x 38mm
- Housing: Aluminum
- Impeller: Metal
- Motor: AC Shaded Pole Type and Outer Rotor
- Operating Temperature: -10°C ~ +105°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Metal
- Motor: AC Shaded Pole Type and Outer Rotor
- Operating Temperature: -10°C ~ +105°C
- Insulation: Class A
Download PDF
AA1238M9L SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA1238V11MBH*9L |
110/125 |
50/60 |
0.21 |
24 |
2600/3000 |
106/120 |
6.4/7.5 |
46/50 |
|
AA1238V22MBH*9L |
200/240 |
50/60 |
0.15 |
24 |
2600/3000 |
106/120 |
6.4/7.5 |
46/50 |
|
AA1238V11MBM*9L |
110/125 |
50/60 |
0.21 |
17 |
2000/3000 |
79/87 |
2.8/3.5 |
39/41 |
|
AA1238V22MBM*9L |
200/240 |
50/60 |
0.1 |
16 |
2000/3000 |
79/87 |
2.8/3.5 |
39/41 |
_ for B / S = Ball Bearing / Sleeve Bearing,
* for T/W = Terminals/ Lead Wires
