AC Fans 11cm ~ 16cm

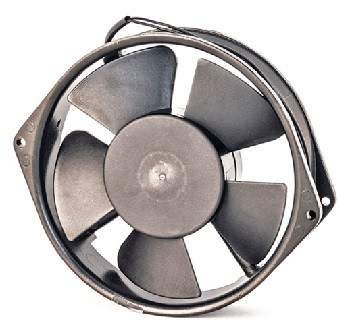

AA15383C SERIES

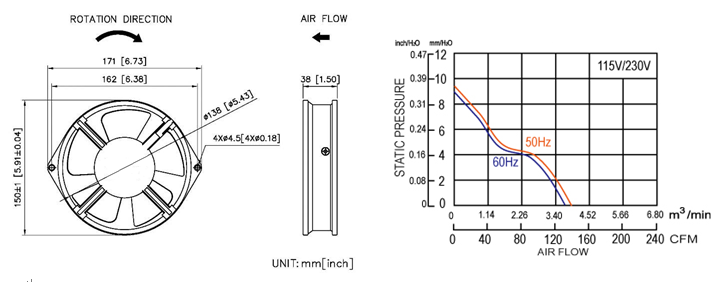

- Size: 172 x 150 x 38mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type and Outer Rotor
- Operating Temperature: -10°C ~ +105°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type and Outer Rotor
- Operating Temperature: -10°C ~ +105°C
- Insulation: Class A
Download PDF
AA15383C SERIES
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA1538V11BH*3C |
110/120 |
50/60 |
0.30/0.27 |
22/20 |
2300/2000 |
140/130 |
9.65/9.14 |
31/30 |
|
AA1538V22BH*3C |
220/240 |
50/60 |
0.18/0.16 |
27/24 |
2300/2000 |
140/130 |
9.65/9.14 |
31/30 |
_ for B / S = Ball Bearing / Sleeve Bearing,
* for T/W = Terminals/ Lead Wires
