AC Fans 11cm ~ 16cm

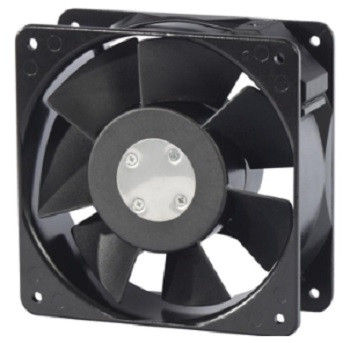

AA1662 SERIES
- Size: 160 x 160 x 62mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Induction Capacitor Motor
- Operating Temperature: -20°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Induction Capacitor Motor
- Operating Temperature: -20°C ~ +70°C
- Insulation: Class A
Download PDF
AA1662 SERIES (2020)
|
Model No. |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA1662V11BH* |
115 |
50/60 |
0.45/0.50 |
51/58 |
2900/3400 |
261/307 |
14.7/19.3 |
60/64 |
|
AA1662V22BH* |
230 |
50/60 |
0.23/0.25 |
51/57 |
2900/3400 |
261/305 |
14.7/19.3 |
60/64 |
* for T/W = Terminals/ Lead Wires
