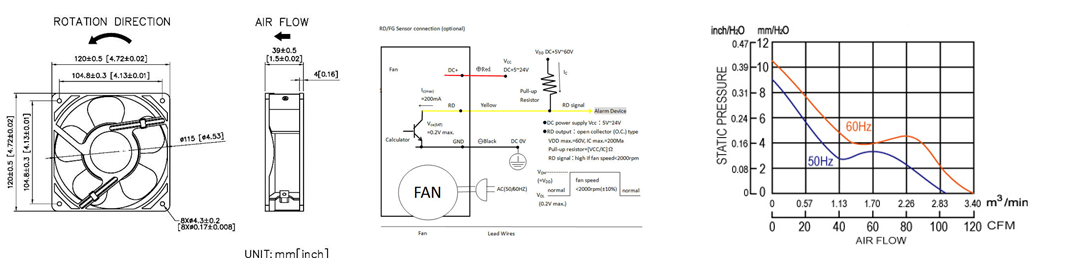

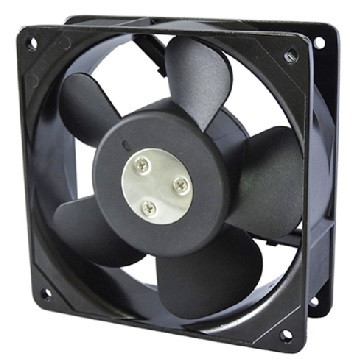

AA1238ZS SERIES WITH RD & FG FUNCTION
- Size: 120 x 120 x 38mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Induction Capacitor Motor
- Operating Temperature: -20°C ~ +70°C
- Operating Voltage:
103 VAC to 126 VAC for 115V
207 VAC to 253 VAC for 230V
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Induction Capacitor Motor
- Operating Temperature: -20°C ~ +70°C
- Operating Voltage:
103 VAC to 126 VAC for 115V
207 VAC to 253 VAC for 230V
- Insulation: Class A
Download PDF
AA1238ZS SERIES WITH RD & FG F
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA1238V11BH*ZS |
115 |
50/60 |
0.12/0.12 |
15/15 |
2700/3200 |
110/120 |
9/10.5 |
43/47 |
|
AA1238V22BH*ZS |
230 |
50/60 |
0.1/0.1 |
15/15 |
2700/3200 |
110/120 |
9/10.5 |
43/47 |
* for T/W = Terminals/ Lead Wires
