AC Fans 17cm ~ 18cm

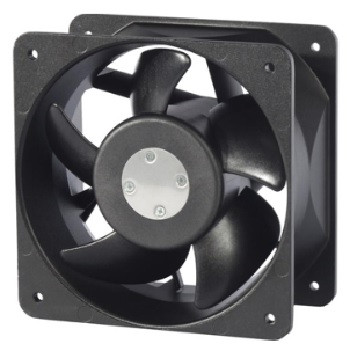

AA1890
- Size: 180 x 180 x 90mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Induction Capacitor Motor
- Operating Temperature: -20°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Induction Capacitor Motor
- Operating Temperature: -20°C ~ +70°C
- Insulation: Class A
Download PDF
AA1890 (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA1890V11BH* |
115 |
50/60 |
0.47/0.66 |
57/77 |
2800/3000 |
376/409 |
16.26/17.01 |
58/61 |
|
AA1890V22BH* |
230 |
50/60 |
0.25/0.33 |
58/76 |
2800/3200 |
378/434 |
20.06/18.54 |
58/62 |
* for T/W = Terminals/ Lead Wires
