AC Fans 17cm ~ 18cm

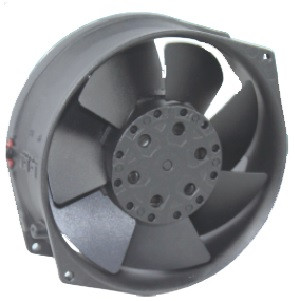

AA1755M9L SERIES
- Size: 170 x 150 x 55mm
- Housing: Aluminum
- Impeller: Metal
- Motor: AC Shaded Pole With External Motor
- Operating Temperature: -10°C ~ +105°C
- Insulation: Class B
- Housing: Aluminum
- Impeller: Metal
- Motor: AC Shaded Pole With External Motor
- Operating Temperature: -10°C ~ +105°C
- Insulation: Class B
Download PDF
AA1755M9L SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
dB(A) |
|
|
AA1755V11MBH*9L |
100/125 |
50/60 |
0.58/0.5 |
42/39 |
2800/3100 |
191/224 |
48/52 |
|
AA1755V22MBH*9L |
200/240 |
50/60 |
0.25/0.2 |
35/31 |
2800/3100 |
191/224 |
48/52 |
|
AA1755V11MBM*9L |
100/125 |
50/60 |
0.4/0.35 |
45/48 |
2400/2800 |
170/191 |
45/48 |
|
AA1755V22MBM*9L |
200/240 |
50/60 |
0.2/0.18 |
28/25 |
2400/2800 |
170/191 |
45/48 |
* for T/W = Terminals/ Lead Wires
