AC Fans 17cm ~ 18cm

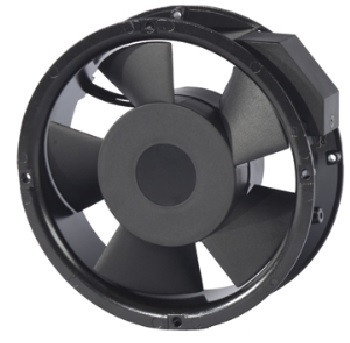

AA1751R SERIES

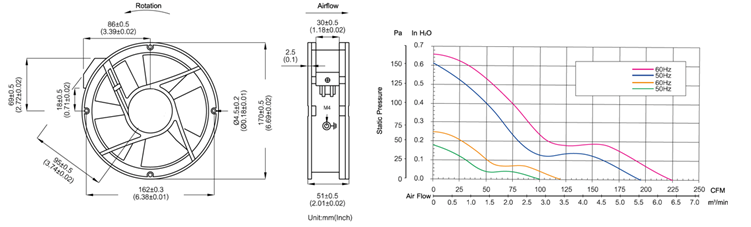

- Size: 170 x 51mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Induction Capacitor Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Induction Capacitor Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF
AA1751R SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA1751RV11BH* |
115 |
50/60 |
0.22/0.28 |
25/31 |
2900/3400 |
195/225 |
15.1/15.6 |
57/61 |
|
AA1751RV22BH* |
230 |
50/60 |
0.11/0.14 |
24/30 |
2900/3400 |
195/225 |
15.1/15.6 |
57/61 |
|
AA1751RV11BL* |
115 |
50/60 |
0.15/0.15 |
17/16 |
1450/1750 |
100/121 |
4.57/6.35 |
39/44 |
|
AA1751RV22BL* |
230 |
50/60 |
0.06/0.06 |
14/13 |
1450/1750 |
101/120 |
4.57/6.35 |
39/44 |
* for T/W = Terminals/ Lead Wires
