AC Fans 17cm ~ 18cm

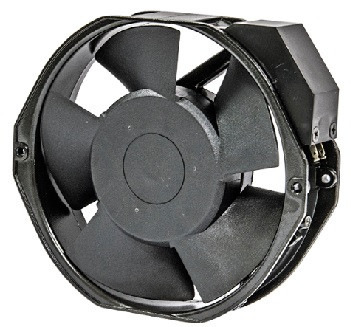

AA17383C SERIES

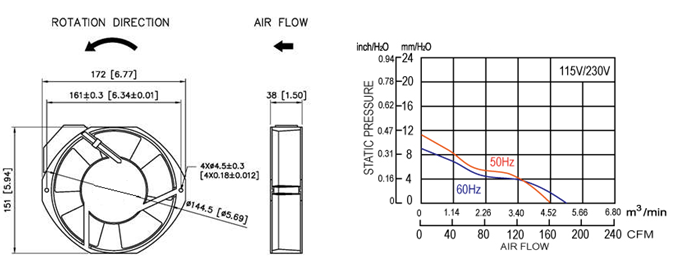

- Size: 172 x 151 x 38mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: Shaded Pole Motor
- Operating Temperature: -20°C ~ +70°C
- Insulation: Class B
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: Shaded Pole Motor
- Operating Temperature: -20°C ~ +70°C
- Insulation: Class B
Download PDF
AA17383C SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA1738V11BH*3C |
110/120 |
50/60 |
0.58/0.47 |
43/36 |
2580/2880 |
160/185 |
11.4/8.9 |
49 |
|
AA1738V22BH*3C |
220/240 |
50/60 |
0.32/0.25 |
48/39 |
2580/2880 |
160/185 |
11.4/8.9 |
49 |
* for T/W = Terminals/ Lead Wires
