AC Fans 17cm ~ 18cm

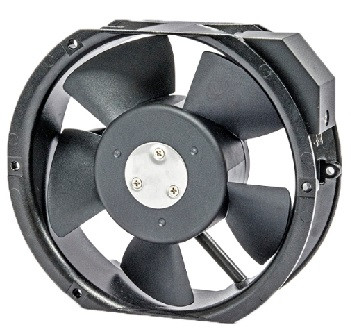

AA17251ZS SERIES WITH RD & FG FUNCTION
- Size: 172 x 150 x 51mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Induction Capacitor Motor
- Operating Temperature: -20°C ~ +70°C
- Operating Voltage:
85VAC to 125 VAC for 115V
185 VAC to 245 VAC for 230V
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Induction Capacitor Motor
- Operating Temperature: -20°C ~ +70°C
- Operating Voltage:
85VAC to 125 VAC for 115V
185 VAC to 245 VAC for 230V
- Insulation: Class A
Download PDF

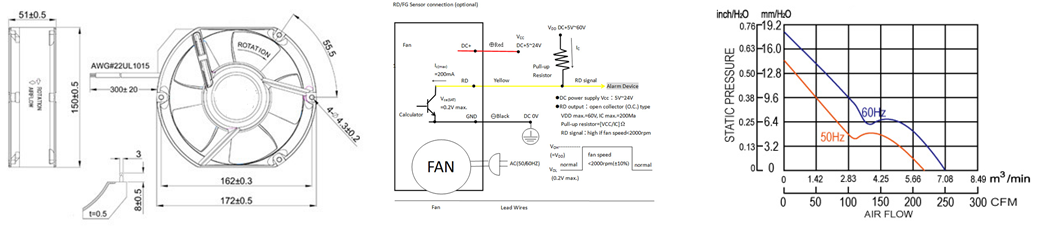

AA17251ZS SERIES WITH RD & FG
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA17251V11BH*ZS |
115 |
50/60 |
0.23/0.22/ |
26/24 |
2750/3250 |
215/250 |
14.5/18.5 |
53/58 |
|
AA17251V22BH*ZS |
230 |
50/60 |
0.12/0.11 |
26/24 |
2750/3250 |
215/250 |
14.5/18.5 |
53/58 |
* for T/W = Terminals/ Lead Wires
