AC Fans 17cm ~ 18cm

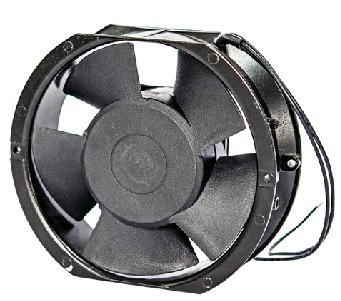

AA172513C SERIES
- Size: 172 x 151 x 51mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Induction Capacitor Motor
- Operating Temperature: -20°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Induction Capacitor Motor
- Operating Temperature: -20°C ~ +70°C
- Insulation: Class A
Download PDF
AA172513C SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA17251V11BH*3C |
110/120 |
50/60 |
0.50/0.45 |
38/35 |
2800/3100 |
190/235 |
15.9/20.0 |
50/45 |
|
AA17251V22BH*3C |
220/240 |
50/60 |
0.23/0.21 |
32/31 |
2800/3100 |
190/233 |
15.9/20.0 |
50/45 |
* for T/W = Terminals/ Lead Wires
