AC Fans 17cm ~ 18cm

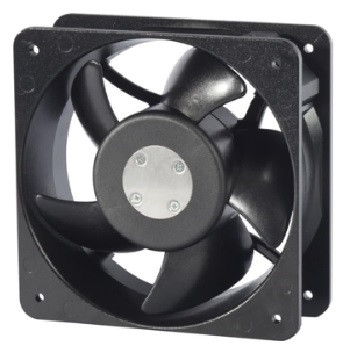

AA1865 SERIES
- Size: 180 x 180 x 65mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Induction Capacitor Motor
- Operating Temperature: -20°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Induction Capacitor Motor
- Operating Temperature: -20°C ~ +70°C
- Insulation: Class A
Download PDF
AA1865 SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA1865V11BH* |
115 |
50/60 |
0.49/0.66 |
56/74 |
2800/3150 |
342/365 |
16.9/18.8 |
58/61 |
|
AA1865V22BH* |
230 |
50/60 |
0.26/0.33 |
58/76 |
2900/3300 |
352/394 |
16.9/18.8 |
58/61 |
* for T/W = Terminals/ Lead Wires
