AC Fans 20cm ~ 25cm

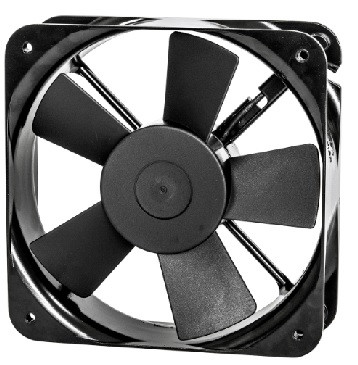

AA200603C SERIES
- Size: 200 x 200 x 60mm
- Housing: Aluminum
- Impeller: Glass fiber reinforced plastic UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Glass fiber reinforced plastic UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF

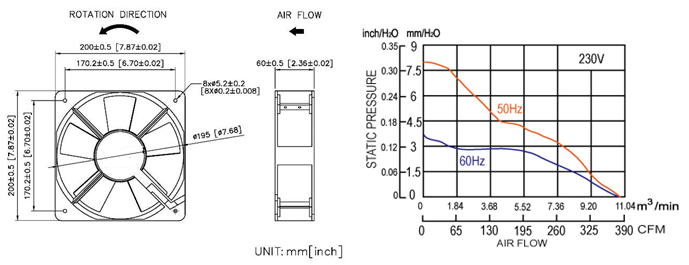

AA200603C SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA2060V22BH*3C |
230 |
50/60 |
0.40/0.35 |
50/60 |
2650/2740 |
376/374 |
7.9/3.83 |
52/52 |
* for T/W = Terminals/ Lead Wires
