AC Fans 20cm ~ 25cm

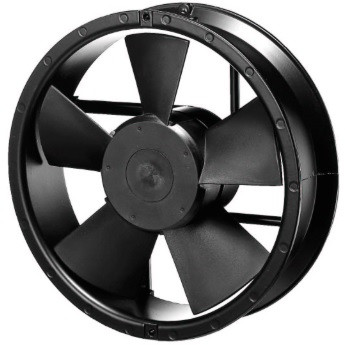

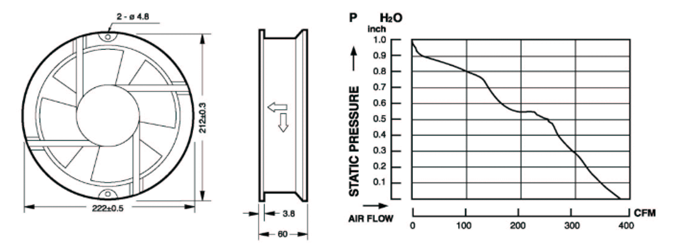

AA220603C SERIES
- Size: Φ220 x 60mm
- Housing: Aluminum
- Impeller: Glass fiber reinforced plastic UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Glass fiber reinforced plastic UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF
AA220603C SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(INCH-H2O) |
dB(A) |
|
|
AA22060V11BH*3C |
110/120 |
50 |
0.7 |
52 |
2400 |
360 |
0.9 |
56 |
|
AA22060V22BH*3C |
220/240 |
50 |
0.3 |
44 |
2400 |
360 |
0.9 |
56 |
* for T/W = Terminals/ Lead Wires
