AC Fans 20cm ~ 25cm

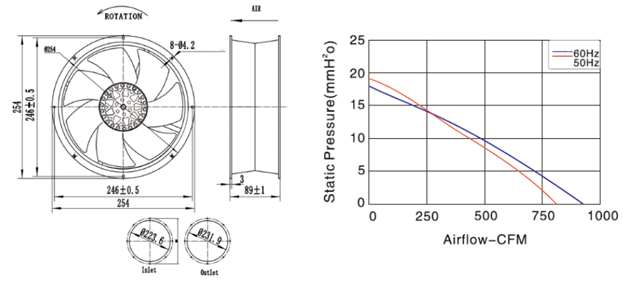

AA25489M9L SERIES
- Size: Φ254 x 89mm
- Housing: Aluminum
- Impeller: Metal
- Motor: AC Capacitor Motor with External Rotor
- Operating Temperature: -10°C ~ + 105°C
- Insulation: Class E
- Housing: Aluminum
- Impeller: Metal
- Motor: AC Capacitor Motor with External Rotor
- Operating Temperature: -10°C ~ + 105°C
- Insulation: Class E
Download PDF
AA25489M9L SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
dB(A) |
|
|
AA25489V11MBH*9L |
100/125 |
50/60 |
0.98/1.15 |
67/77 |
2700/3100 |
885/900 |
59/61 |
|
AA25489V22MBH*9L |
200/240 |
50/60 |
0.5/0.65 |
62/80 |
2700/3100 |
885/900 |
59/61 |
|
AA25489V38MBH*9L |
380/420 |
50/60 |
0.25 |
65 |
2700/3100 |
885/900 |
59/61 |
* for T/W = Terminals/ Lead Wires
