AC Fans 6cm ~ 9cm

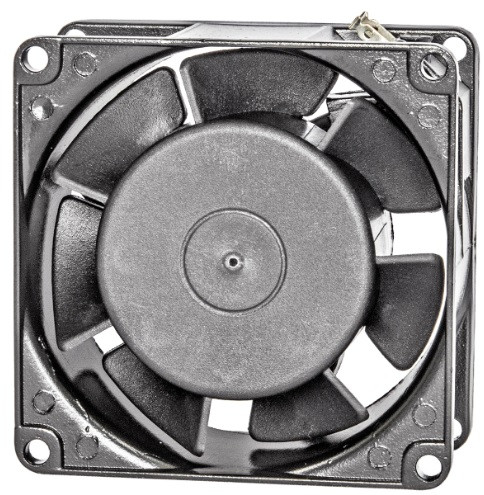

AA80383C SERIES
- Size: 80 x 80 x 38mm
- Housing: Aluminum
- Impeller: Glass fiber reinforced plastic UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- IP Rating: IP21
- Housing: Aluminum
- Impeller: Glass fiber reinforced plastic UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- IP Rating: IP21
Download PDF
AA80383C SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA8038V11BHW3C |
110 |
50/60 |
0.14/0.12 |
13/12 |
2300/2700 |
26/30 |
4.3/6.1 |
30/35 |
|
AA8038V11BMW3C |
110 |
50/60 |
0.12/0.10 |
10/9 |
2000/2300 |
21/23 |
3.6/3.8 |
24/27 |
|
AA8038V11BLW3C |
110 |
50/60 |
0.08/0.06 |
6/5 |
1700/1900 |
17/16 |
3.0/2.5 |
21/23 |
|
AA8038V22BHW3C |
230 |
50/60 |
0.10/0.08 |
13/12 |
2300/2700 |
26/30 |
4.3/6.1 |
30/35 |
|
AA8038V22BMW3C |
230 |
50/60 |
0.08/0.06 |
10/9 |
2000/2300 |
21/23 |
3.6/3.8 |
24/27 |
|
AA8038V22BLW3C |
230 |
50/60 |
0.05/0.04 |
6/5 |
1700/1900 |
17/16 |
3.0/2.5 |
21/23 |
