AC Fans 6cm ~ 9cm

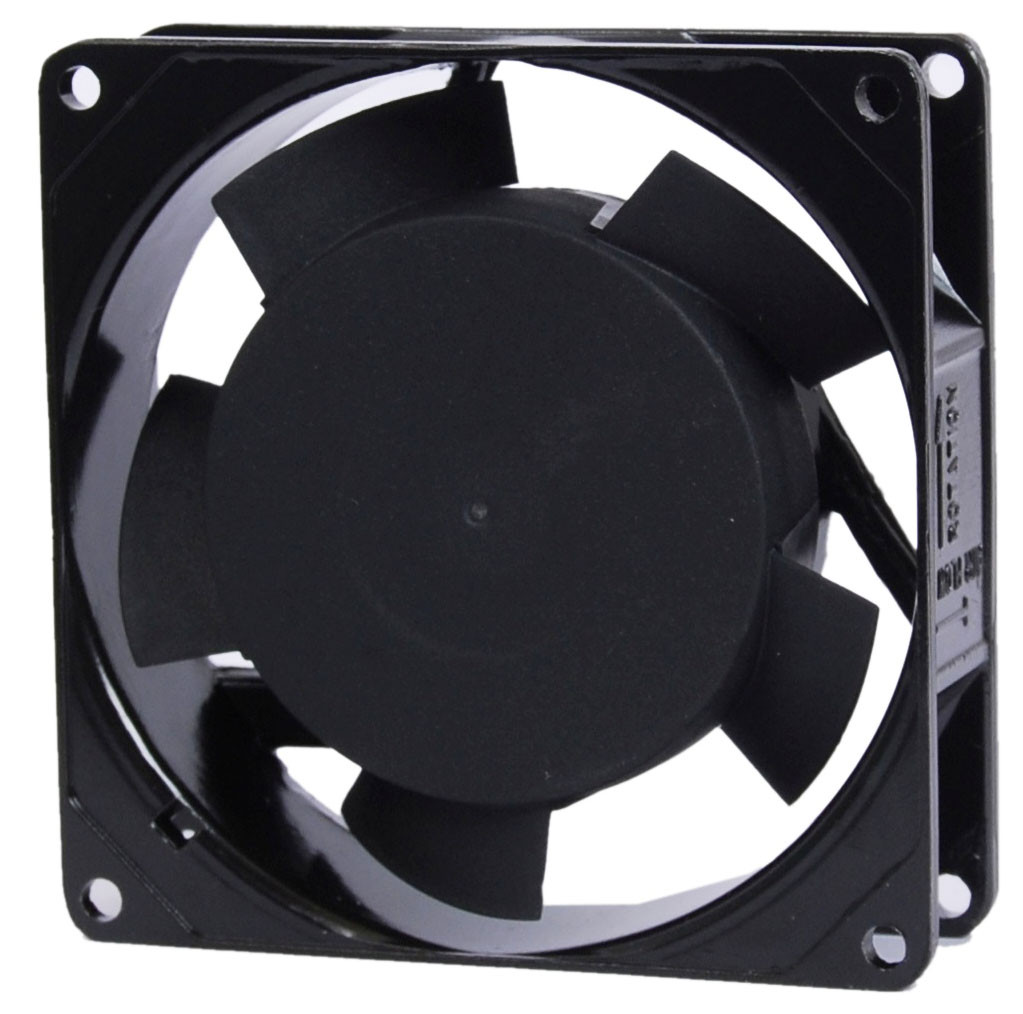

AA9225YY SERIES

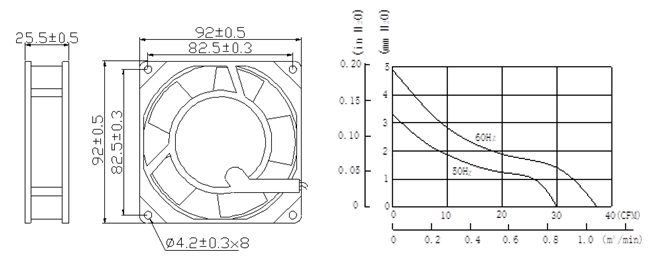

- Size: 90 x 90 x 25mm
- Housing: Aluminum
- Impeller: Aluminum
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Aluminum
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF
AA9225YY SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA9225V11_H*YY |
115 |
50/60 |
0.12/0.10 |
14.0/13.5 |
2550/2900 |
30/37 |
3.3/4.8 |
32/37 |
|
AA9225V11_M*YY |
115 |
50/60 |
0.09/0.08 |
11.0/10.0 |
2300/2600 |
25/30 |
3.0/3.5 |
25/33 |
|
AA9225V11_L*YY |
115 |
50/60 |
0.07/0.07 |
9.0/8.0 |
2000/2200 |
21/22 |
2.7/2.6 |
22/24 |
|
AA9225V22_H*YY |
220 |
50/60 |
0.07/0.06 |
14.0/13.5 |
2550/2900 |
30/37 |
3.3/4.8 |
32/37 |
|
AA9225V22_M*YY |
220 |
50/60 |
0.06/0.06 |
11.0/10.0 |
2300/2600 |
25/30 |
3.0/3.5 |
25/33 |
|
AA9225V22_L*YY |
220 |
50/60 |
0.05/0.05 |
9.0/8.0 |
2000/2200 |
21/22 |
2.7/2.6 |
22/24 |
_ for B / S = Ball Bearing / Sleeve Bearing,
* for T/W = Terminals/ Lead Wires
