AC Fans 6cm ~ 9cm

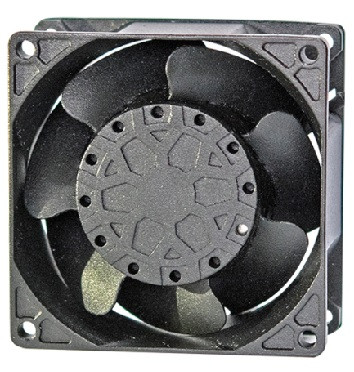

AA8038M9L SERIES

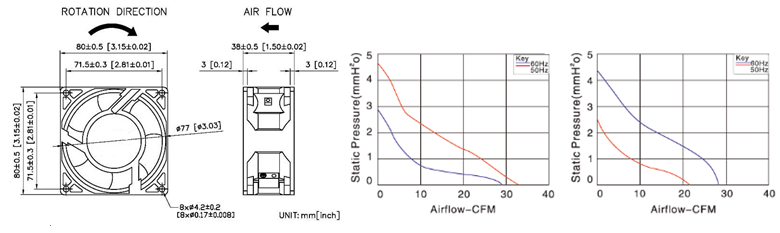

- Size: 80 x 80 x 38mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF
AA8038M9L SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA8038V11MSH*9L |
100/125 |
50/60 |
0.2 |
9.5/7 |
2550/3100 |
23/28 |
4.1/4.8 |
28/32 |
|
AA8038V22MSH*9L |
200/240 |
50/60 |
0.06/0.05 |
9.5/7 |
2550/3100 |
23/28 |
4.1/4.8 |
28/32 |
|
AA8038V11MBH*9L |
100/125 |
50/60 |
0.2 |
9.5/7 |
2550/3100 |
23/28 |
4.1/4.8 |
28/32 |
|
AA8038V22MBH*9L |
200/240 |
50/60 |
0.06/0.05 |
9.5/7 |
2550/3100 |
23/28 |
4.1/4.8 |
28/32 |
|
AA8038V11MSM*9L |
100/125 |
50/60 |
0.13 |
9/7 |
2300/2700 |
26/30 |
2.3/3.2 |
22/26 |
|
AA8038V22MSM*9L |
200/240 |
50/60 |
0.065 |
7/6 |
2300/27400 |
26/30 |
2.3/3.2 |
22/26 |
|
AA8038V11MBM*9L |
100/125 |
50/60 |
0.13 |
9/7 |
2300/2700 |
26/30 |
2.3/3.2 |
22/26 |
|
AA8038V22MBM*9L |
200/240 |
50/60 |
0.065 |
7/6 |
2300/27400 |
26/30 |
2.3/3.2 |
22/26 |
* for T/W = Terminals/ Lead Wires
