AC Fans 6cm ~ 9cm

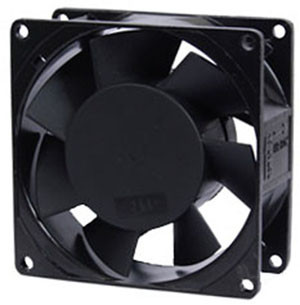

AA9238YY SERIES

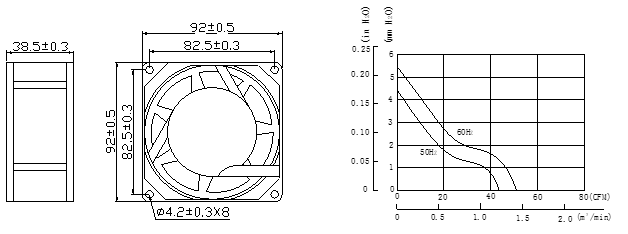

- Size: 90 x 90 x 38mm
- Housing: Aluminum
- Impeller: Aluminum
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Aluminum
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF
AA9238YY SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA9238V11_H*YY |
115 |
50/60 |
0.16/0.14 |
16/14 |
2400/2900 |
43/50 |
4.5/5.5 |
32/36 |
|
AA9238V11_M*YY |
115 |
50/60 |
0.13/0.11 |
14/12 |
2200/2400 |
28/32 |
3.5/4.2 |
27/31 |
|
AA9238V11_L*YY |
115 |
50/60 |
0.10/0.09 |
10/9 |
1800/1600 |
24/23 |
3.0/2.7 |
20/18 |
|
AA9238V22_H*YY |
220 |
50/60 |
0.12/0.11 |
16/14 |
2400/2900 |
43/50 |
4.5/5.5 |
32/36 |
|
AA9238V22_M*YY |
220 |
50/60 |
0.09/0.08 |
14/12 |
2200/2400 |
28/32 |
3.5/4.2 |
27/31 |
|
AA9238V22_L*YY |
220 |
50/60 |
0.08/0.07 |
10/9 |
1800/1600 |
24/23 |
3.0/2.7 |
20/18 |
_ for B / S = Ball Bearing / Sleeve Bearing,
* for T/W = Terminals/ Lead Wires
