AC Fans 6cm ~ 9cm

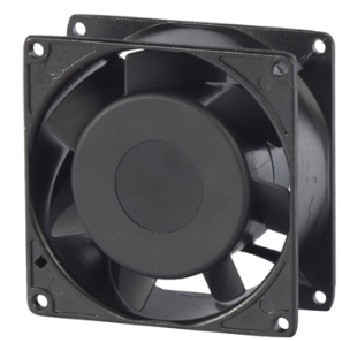

AA9238 SERIES
- Size: 90 x 90 x 38mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL91V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL91V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF
AA9238 SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA9238V11_H*YY |
115 |
50/60 |
0.19/0.15 |
14/11 |
2800/3200 |
42/49 |
4.83/6.10 |
40/45 |
|
AA9238V22_H*YY |
220 |
50/60 |
0.10/0.08 |
15/12 |
2800/3200 |
42/49 |
4.83/6.10 |
40/45 |
_ for B / S = Ball Bearing / Sleeve Bearing,
* for T/W = Terminals/ Lead Wires
