DC Fans 12cm ~25cm

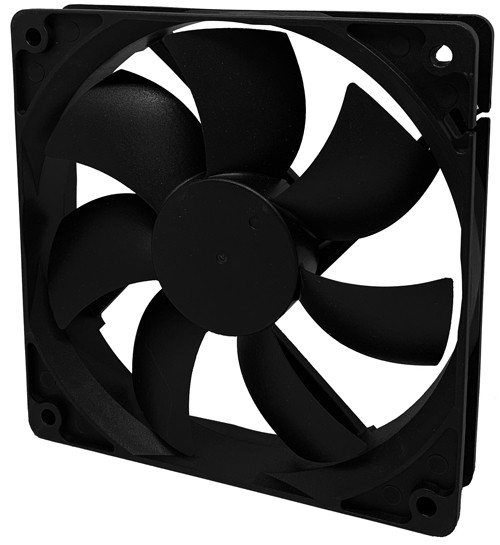

AD1225GE SERIES

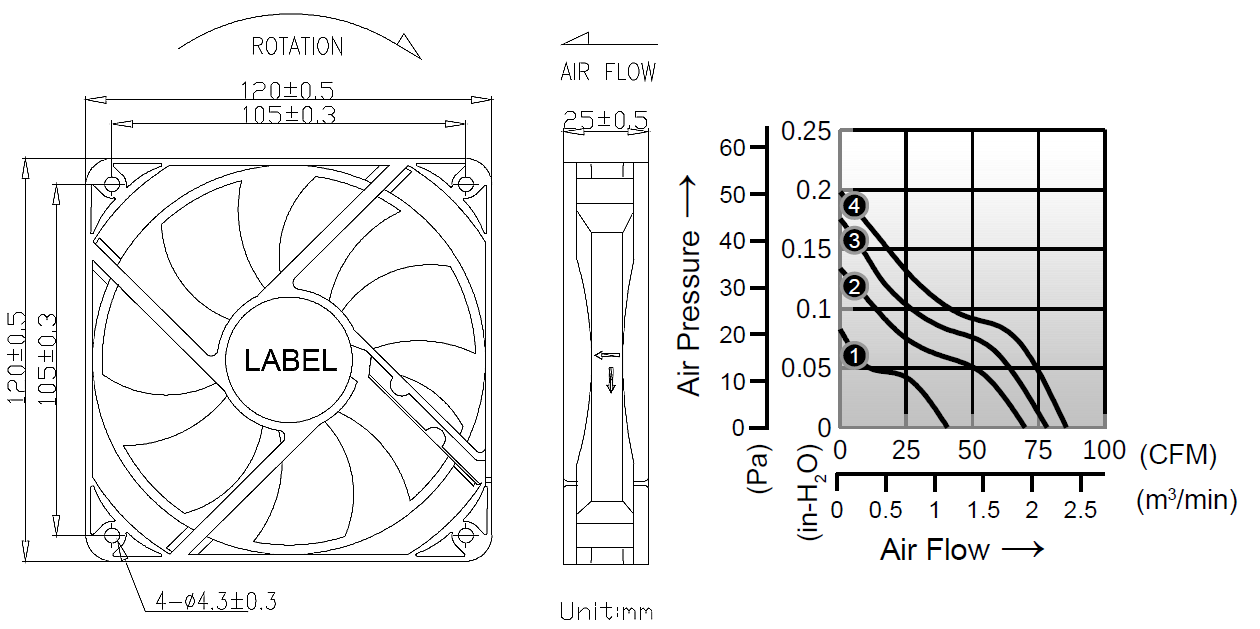

- Size: 120 x 120 x 25mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 152.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 152.0g
Download PDF
AD1225GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD1225V12_JWGE |
12 |
0.08 |
0.96 |
1200 |
40.6 |
0.08 |
19 |
|
① AD1225V24_JWGE |
24 |
0.05 |
1.20 |
1200 |
40.6 |
0.08 |
19 |
|
② AD1225V12_LWGE |
12 |
0.18 |
2.16 |
1900 |
69.6 |
0.13 |
29 |
|
② AD1225V24_LWGE |
24 |
0.10 |
2.40 |
1900 |
69.6 |
0.13 |
29 |
|
③ AD1225V12_MWGE |
12 |
0.20 |
2.40 |
2200 |
78.2 |
0.18 |
31 |
|
③ AD1225V24_MWGE |
24 |
0.18 |
4.32 |
2200 |
78.2 |
0.18 |
31 |
|
④ AD1225V12_HWGE |
12 |
0.28 |
3.36 |
2500 |
85.5 |
0.20 |
36 |
|
④ AD1225V24_HWGE |
24 |
0.26 |
6.24 |
2500 |
85.5 |
0.20 |
36 |
_ for B / S / F = Ball Bearing / Sleeve Bearing / Fluid Bearing
