DC Fans 12cm ~25cm

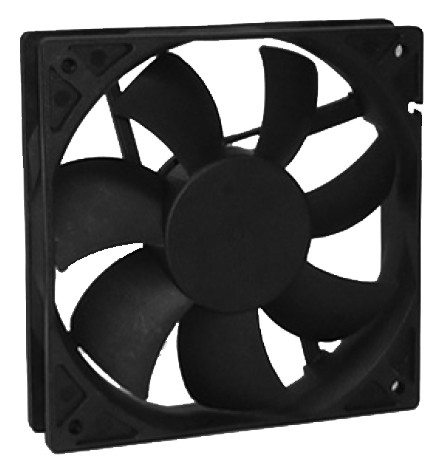

AD1225GD SERIES

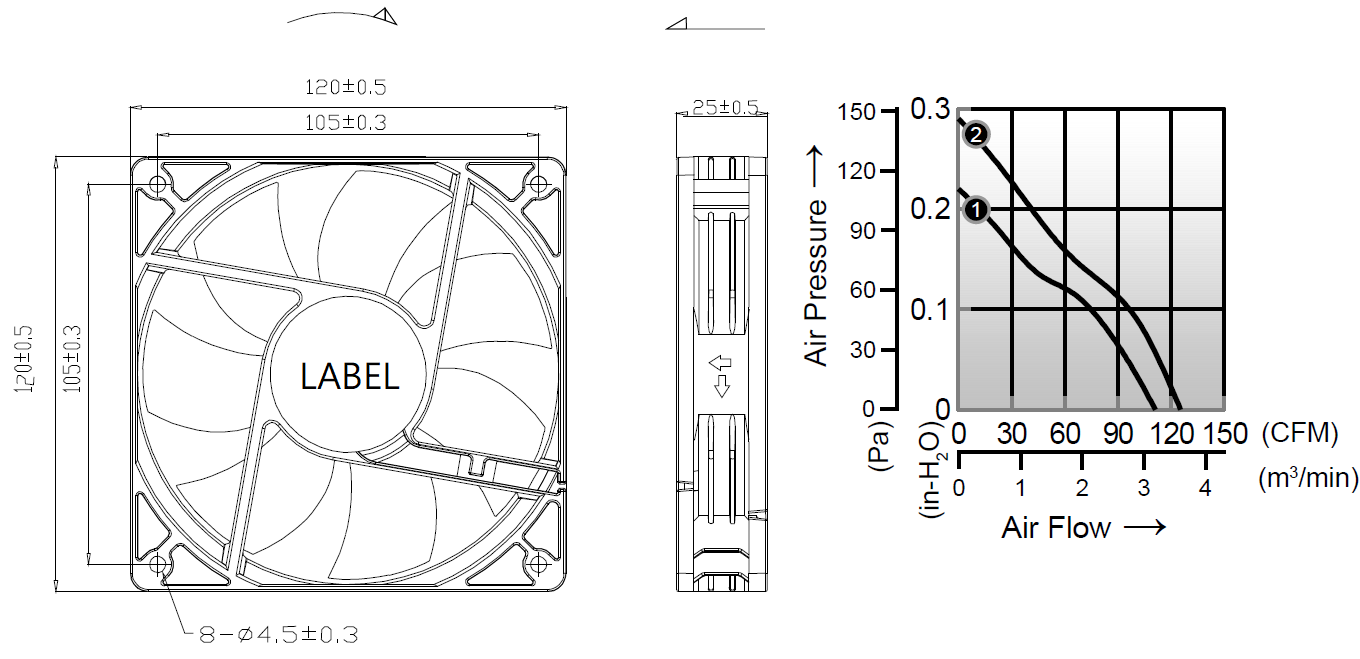

- Size: 120 x 120 x 25mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 155.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 155.0g
Download PDF
AD1225GD SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD1225V12BHWGD |
12 |
0.28 |
3.36 |
2500 |
111.2 |
0.22 |
44 |
|
① AD1225V24BHWGD |
24 |
0.25 |
6.00 |
2500 |
111.2 |
0.22 |
44 |
|
① AD1225V48BHWGD |
48 |
0.10 |
4.80 |
2500 |
111.2 |
0.22 |
44 |
|
② AD1225V12BUWGD |
12 |
0.47 |
5.64 |
3100 |
125.4 |
0.29 |
48 |
|
② AD1225V24BUWGD |
24 |
0.30 |
7.20 |
3100 |
125.4 |
0.29 |
48 |
|
② AD1225V48BUWGD |
48 |
0.12 |
5.76 |
3100 |
125.4 |
0.29 |
48 |
B = Ball Bearing
